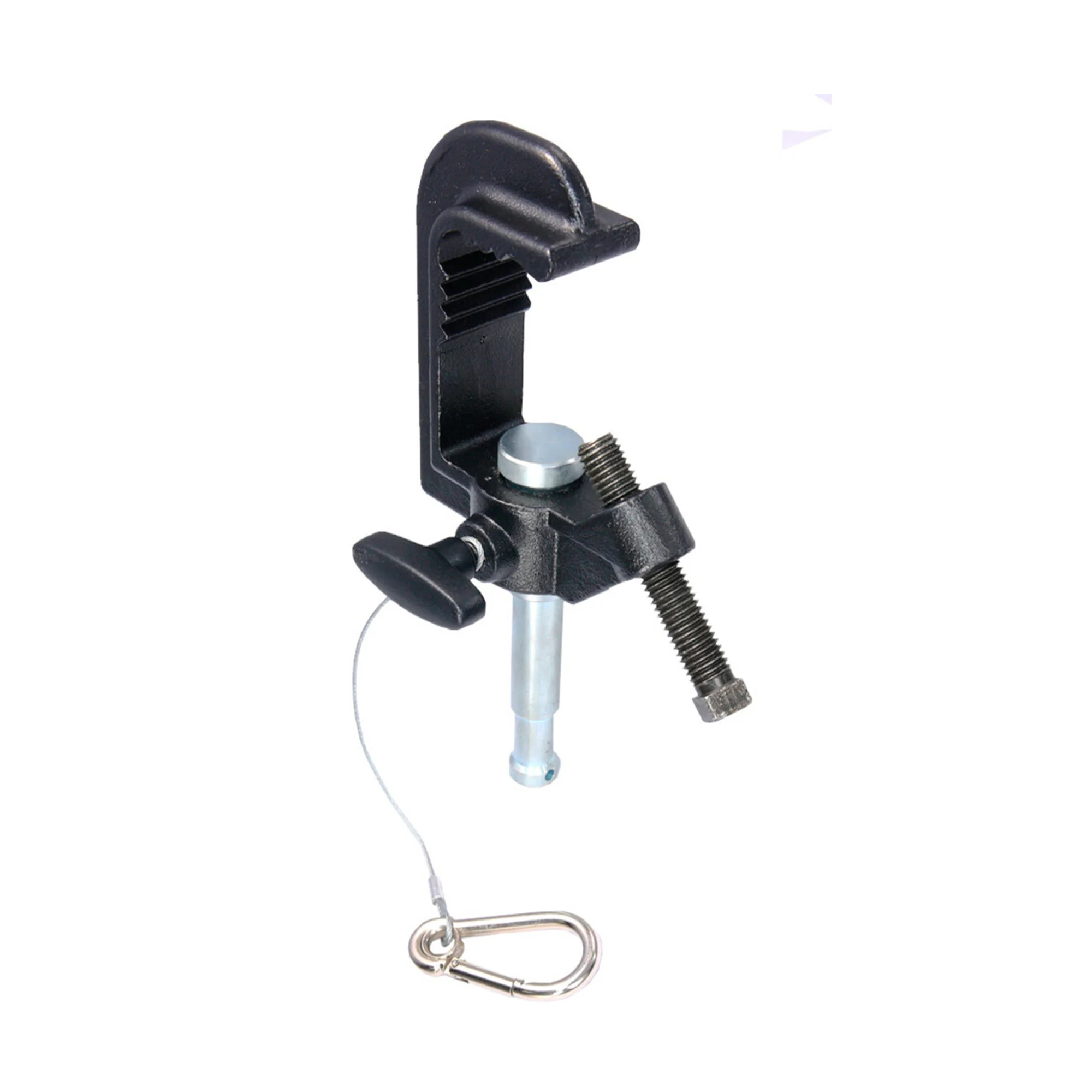

Kupo Baby Pipe Clamp

The Kupo Baby Pipe Clamp is identical to old C clamp designed for most hanging applications, but has a 5/8" (16mm) baby stud for mounting gear with a matching receiver. The clamp can be attached to a 1.5 to 2" tube, truss, or pipe and can support gear weighing up to 220 lb. A safety wire is built-in and the collar on the top of the baby pin keeps it safe for pan adjustments of luminaries while the knob of the clamp is loosened.

Features:

• 5/8" (16mm) baby stud
• Fits up to a 1.5 to 2" tube, truss, or pipe
• Built-In safety wire

Technical Specs:
Load Capacity: 220 lb (100 kg)
Material: Iron Casting, Black Powdered Coat Finish
Compatibility: Pipe, Tube, or Truss with 1.5 - 2.0" (38 - 51 mm) Outside Diameter
Dimensions: Baby Pin: 5/8" (16 mm)
Weight: 2.1 lb (0.95 kg)
