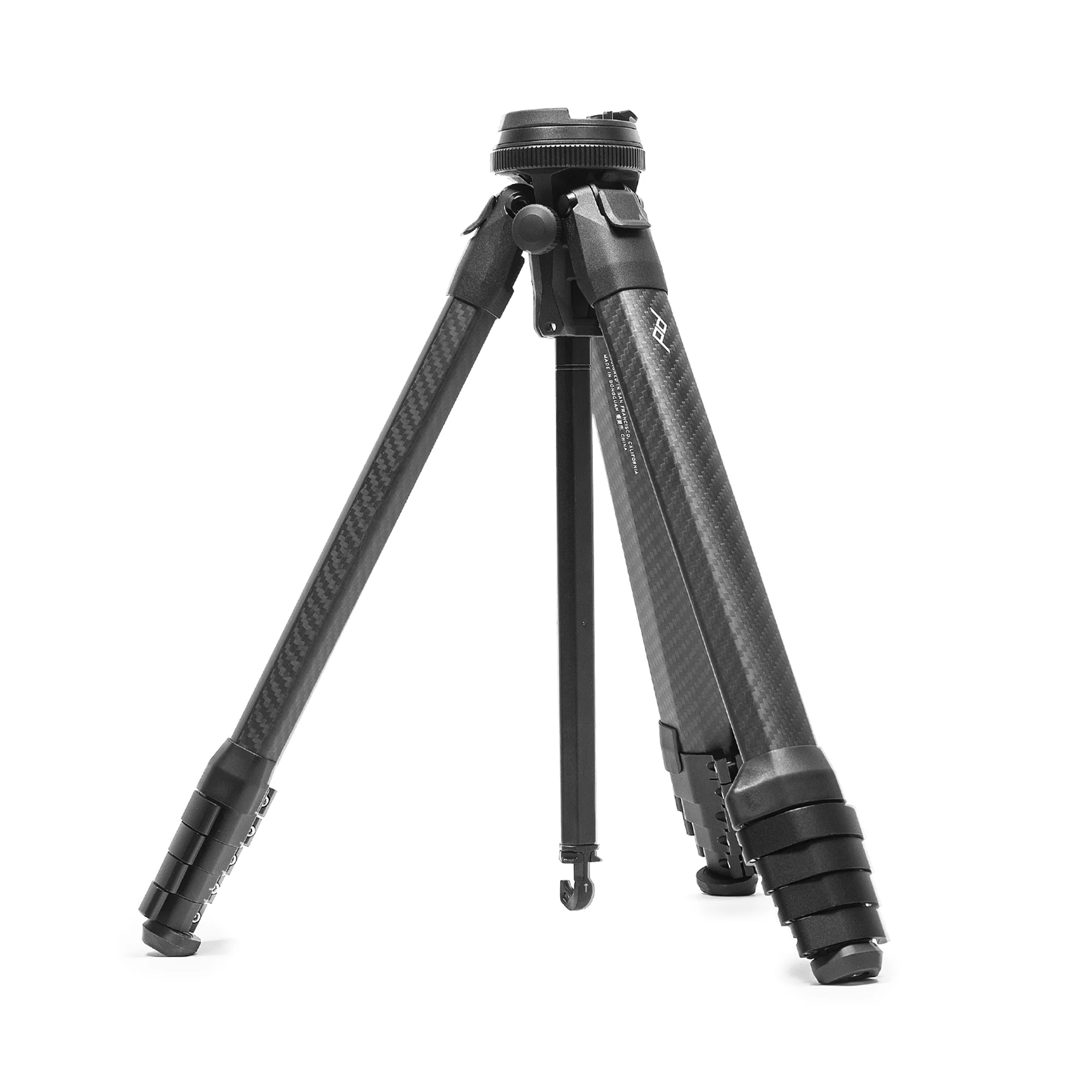

Peak Design Carbon Fiber Travel Tripod

Ultra-compact, full-featured pro tripod.

We spent 4 years redesigning the tripod from the ground up, creating a travel tripod that packs down to the diameter of a water bottle—without compromising height, stability, or features.

Traditional tripods have always suffered from needless bulk and wasted space, so we made it radically faster to setup and takedown. Our tripod features ergonomic adjustment points, built-in mobile compatibility, and thoughtful details at every turn. Plus, it’s built for life on the road: durable, 100% serviceable, and backed by the Peak Design lifetime guarantee.

Tripod includes legs, ballhead, protective soft case, ARCA-compatible Standard Plate, mobile mount, hex tool with carrying clip, and bushing removal tool for maintenance. See Specs section below for details.

Features:

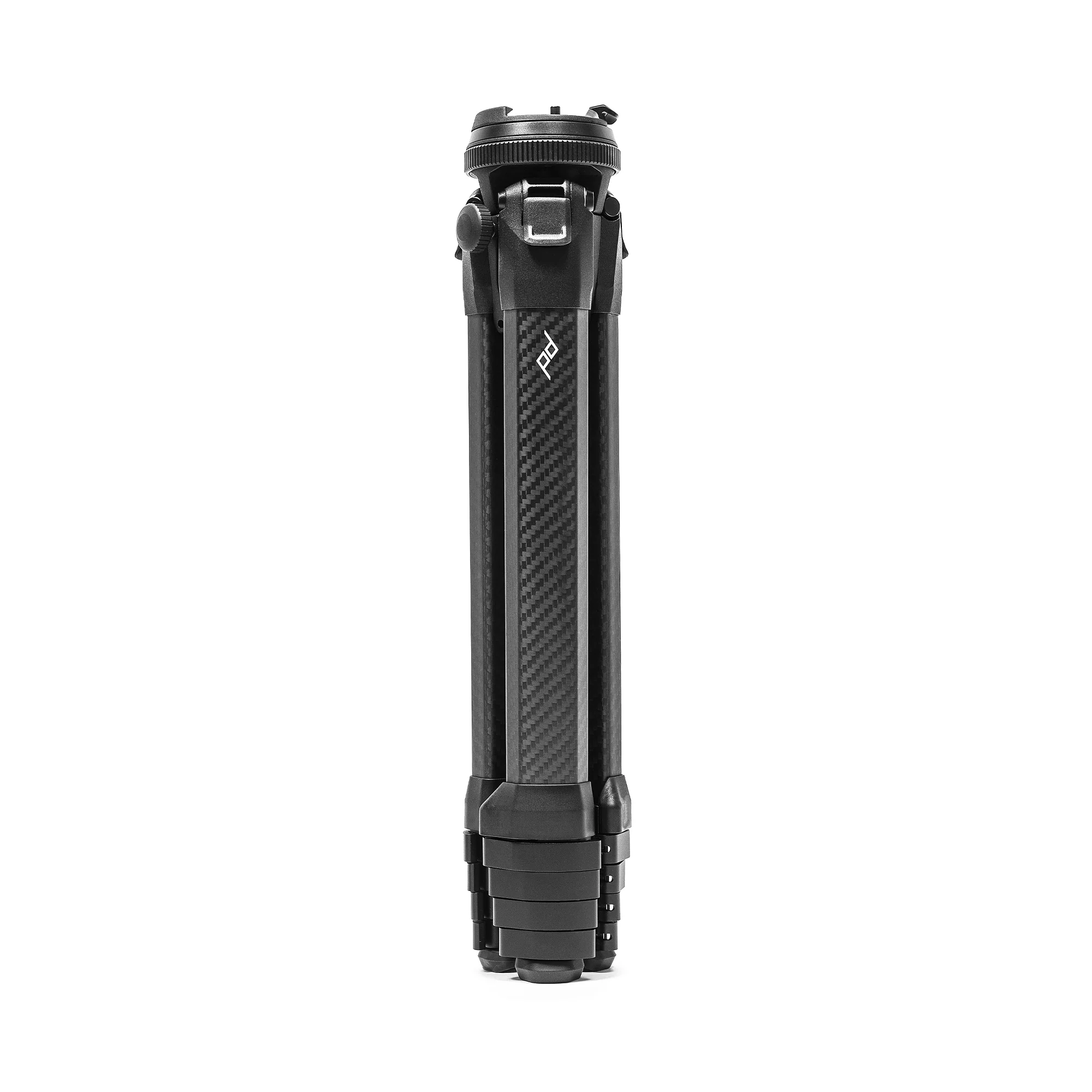

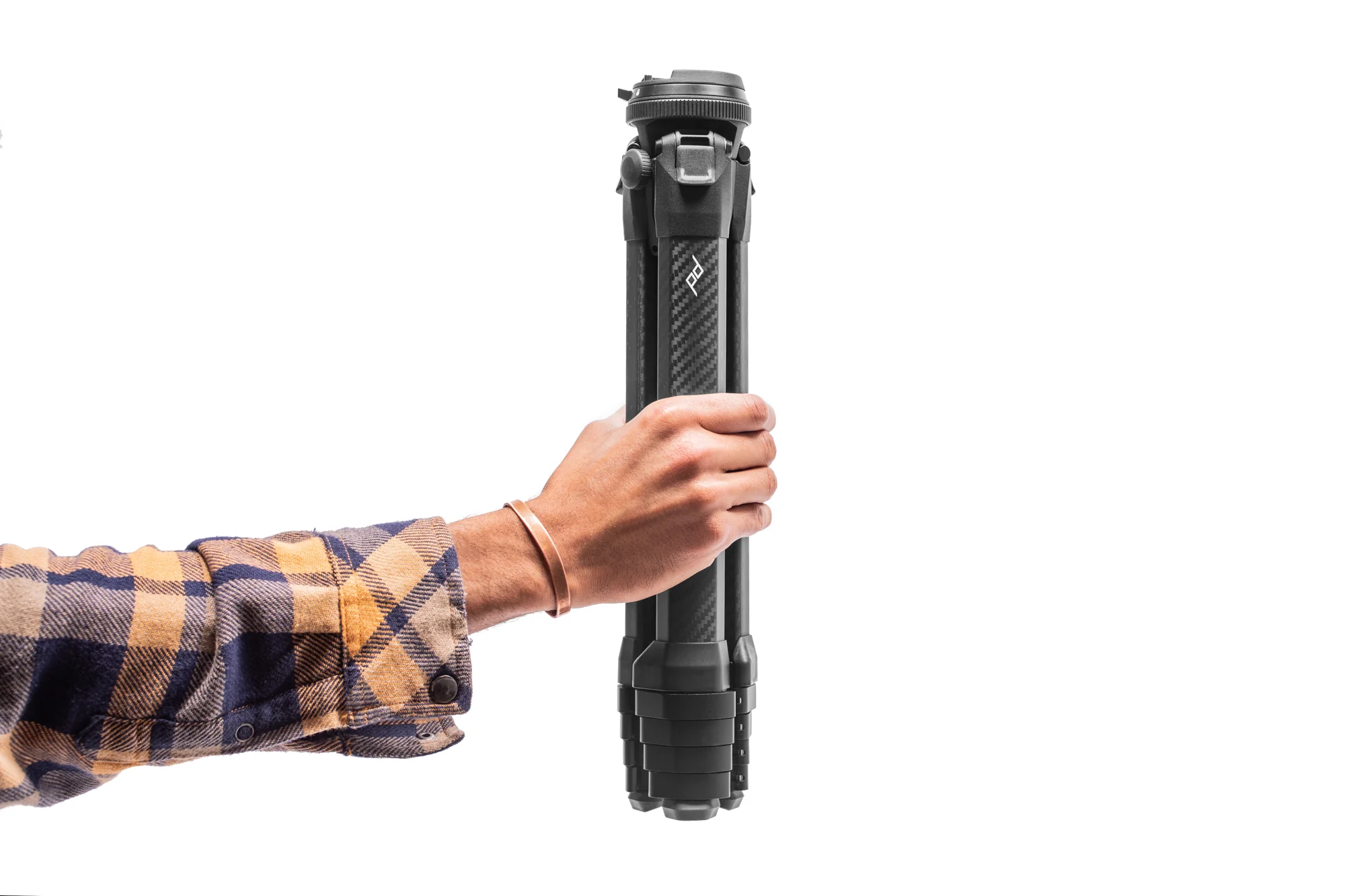

• Spatially efficient design eliminates wasted volume when packed down. Packs down to the diameter of a water bottle. No protruding knobs
• Unique design allows quicker, easier setup/takedown

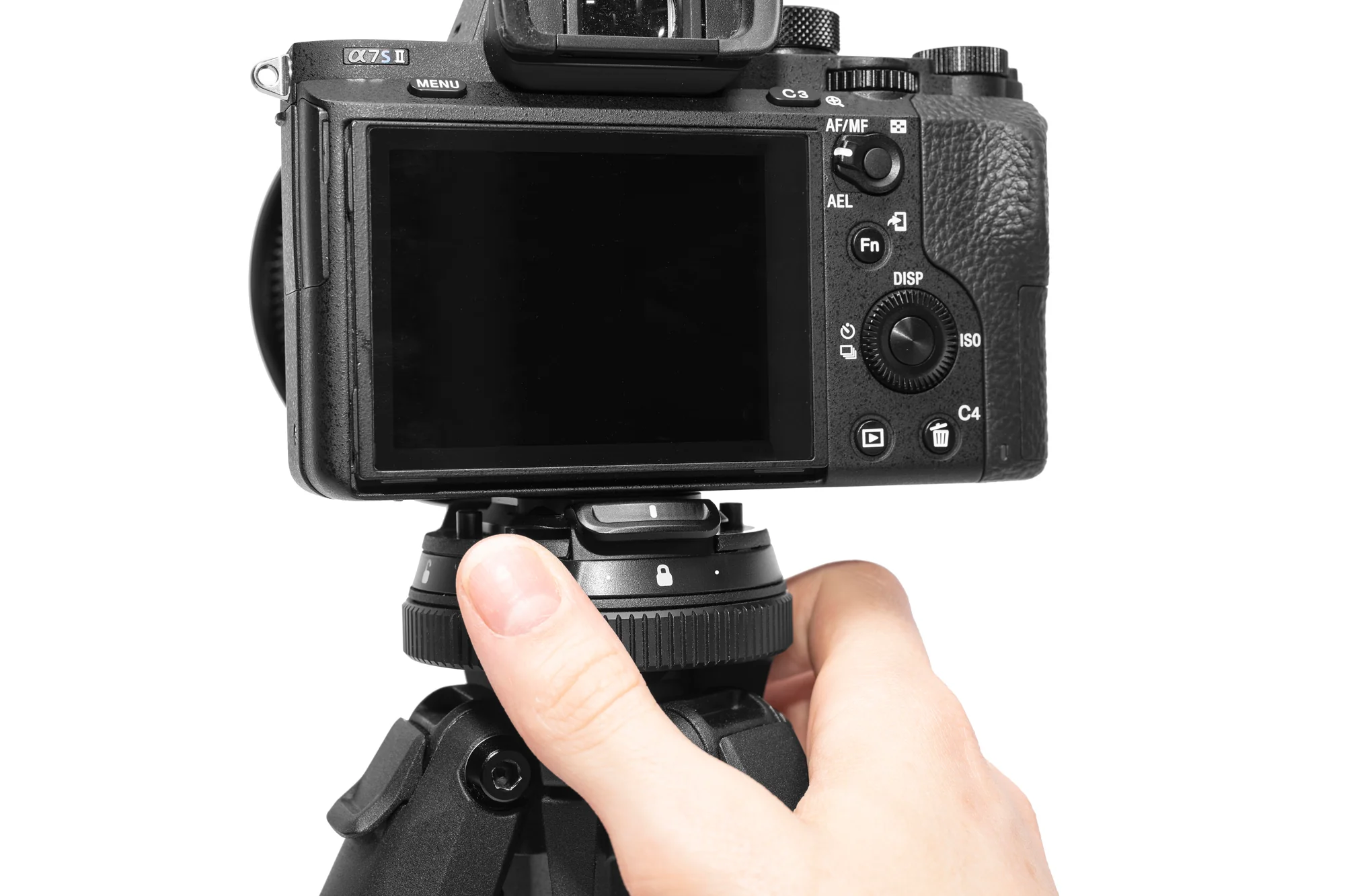

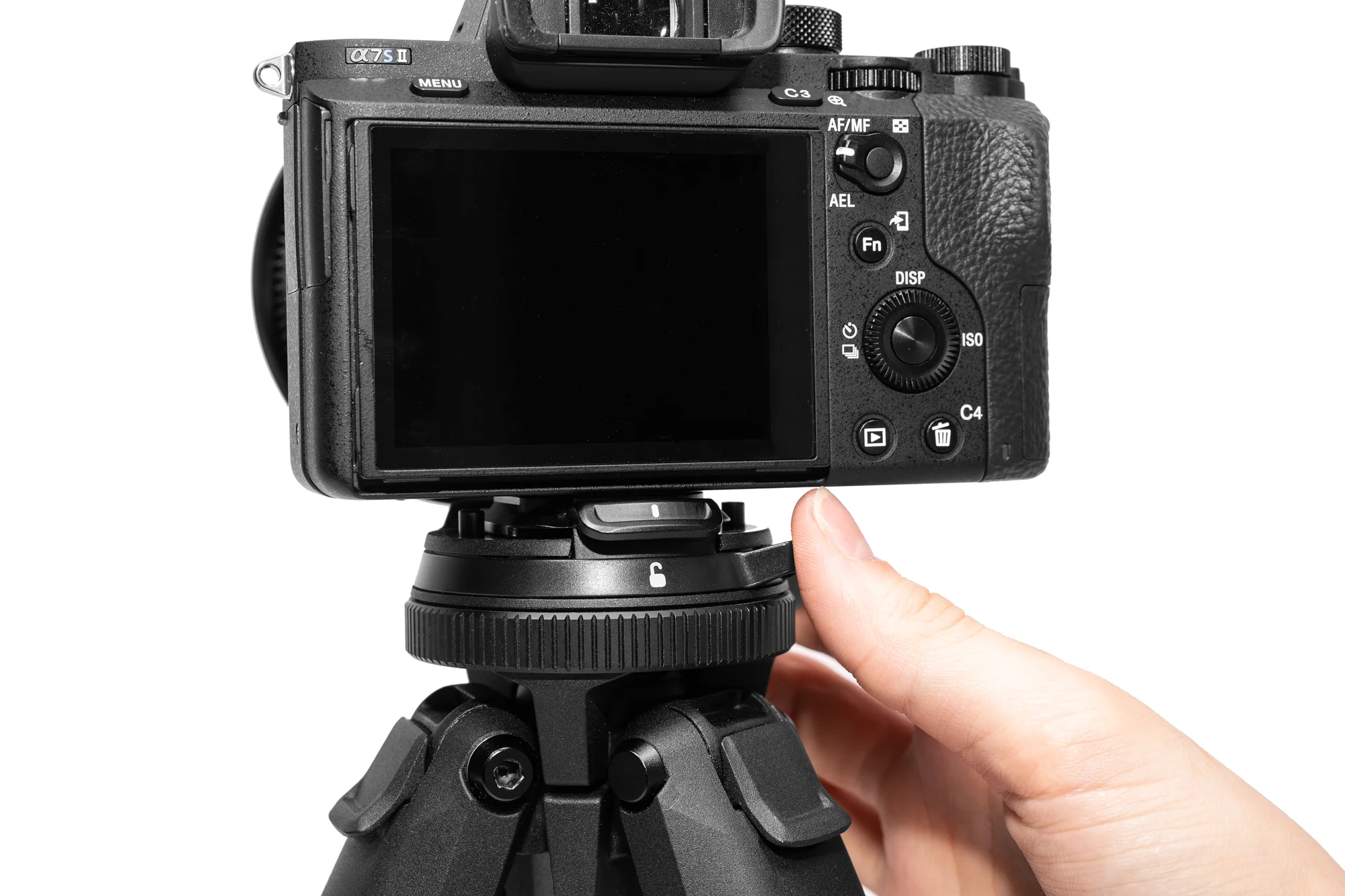

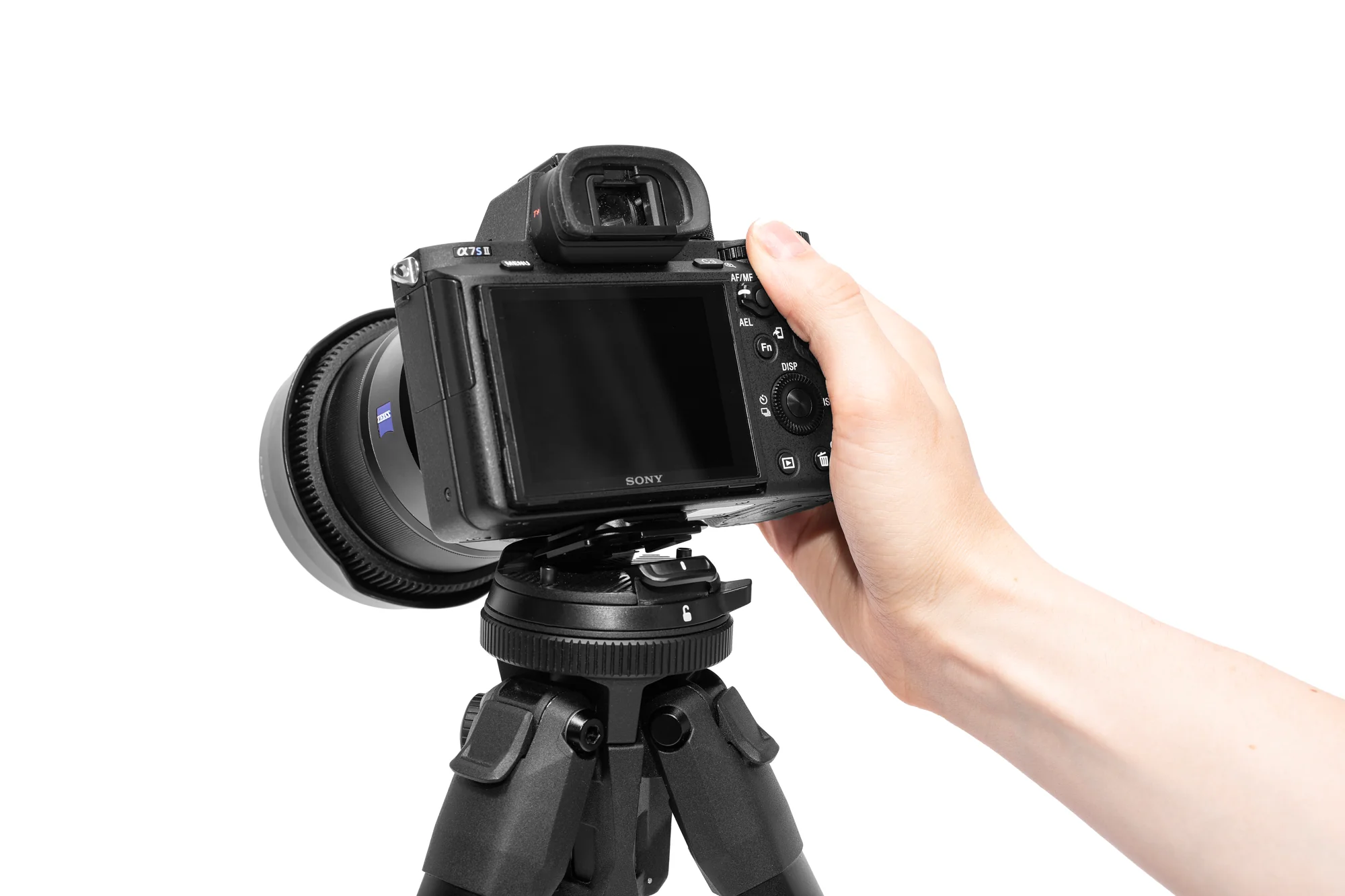

• Secure, fast, and ergonomic camera quick release

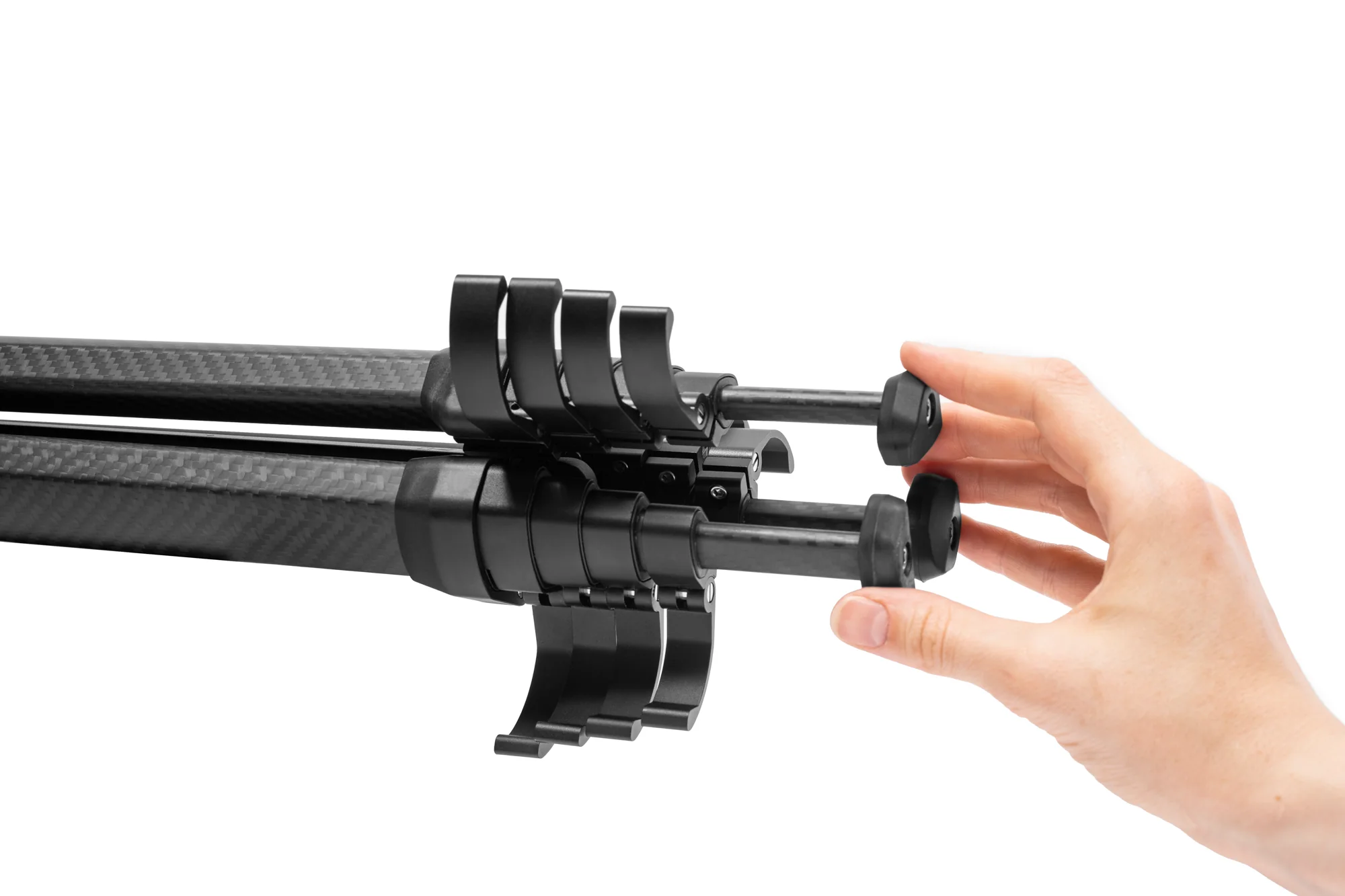

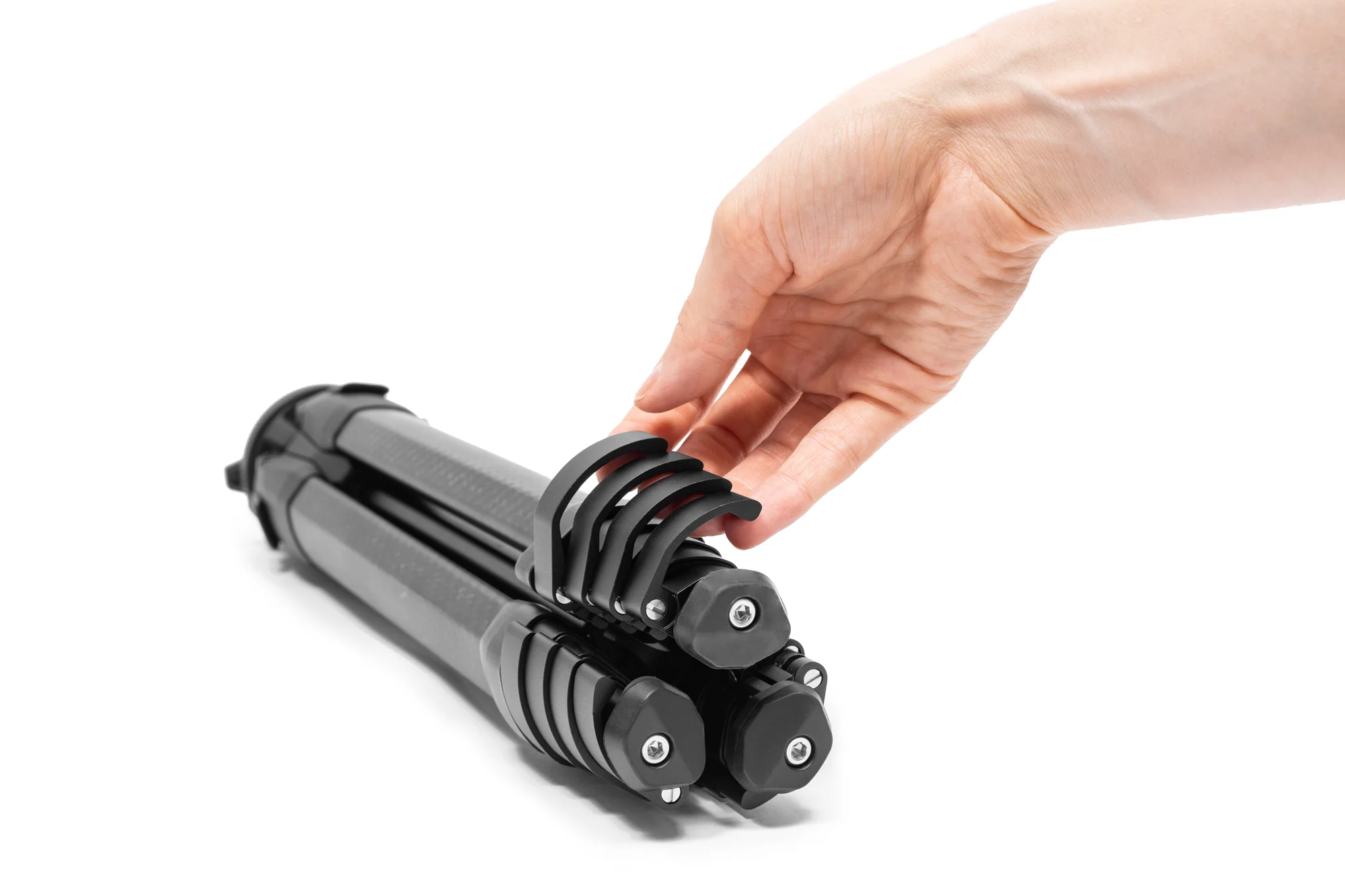

• Fast-locking, low profile leg cams

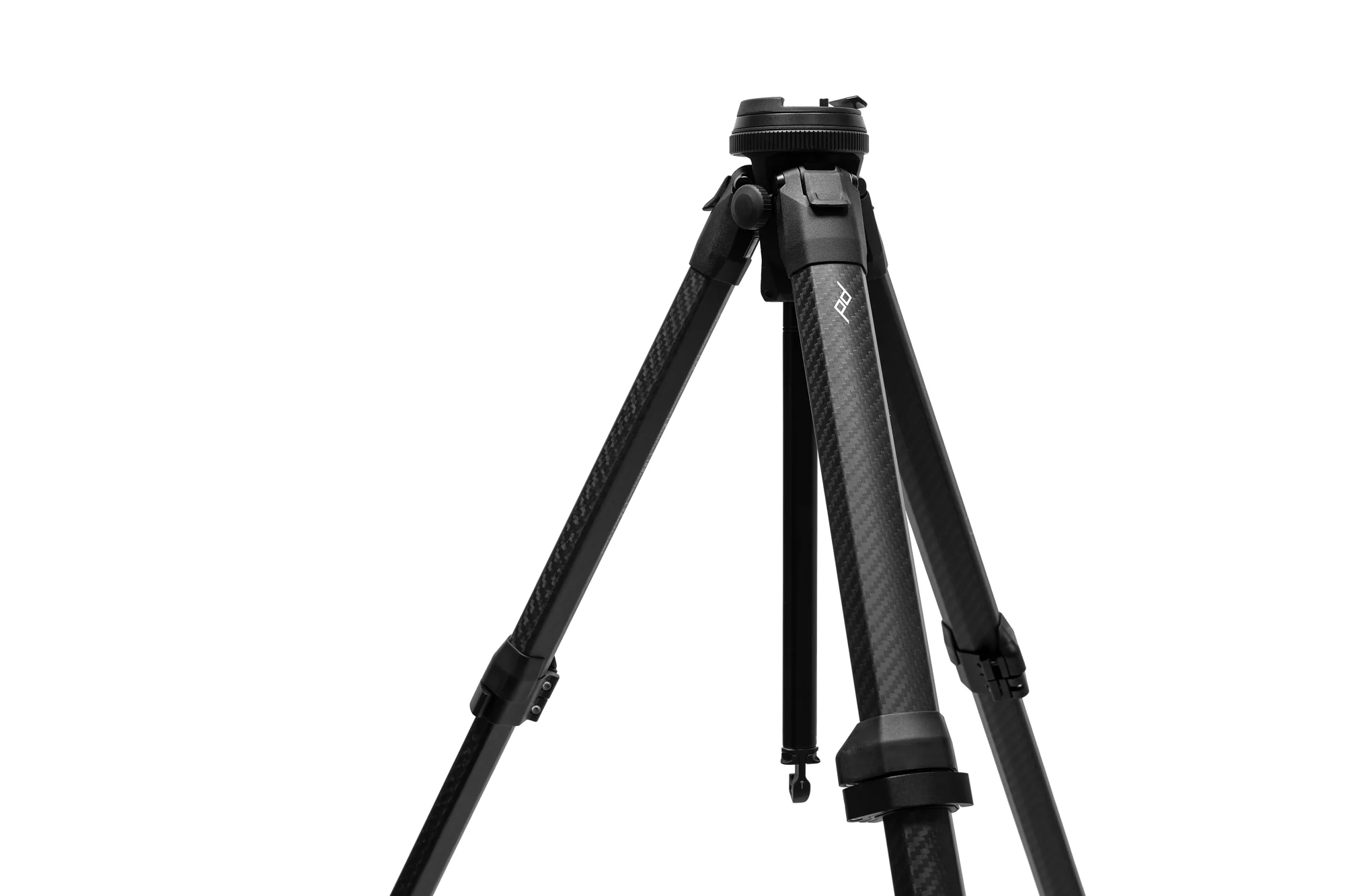

• Legs deploy in seconds, without having to flip over like traditional travel tripod legs

• 20lb weight capacity (optimized for a full-frame DSLR + telephoto lens)
• Stability and vibration damping performance comparable, if not better, than most tripods in its clas

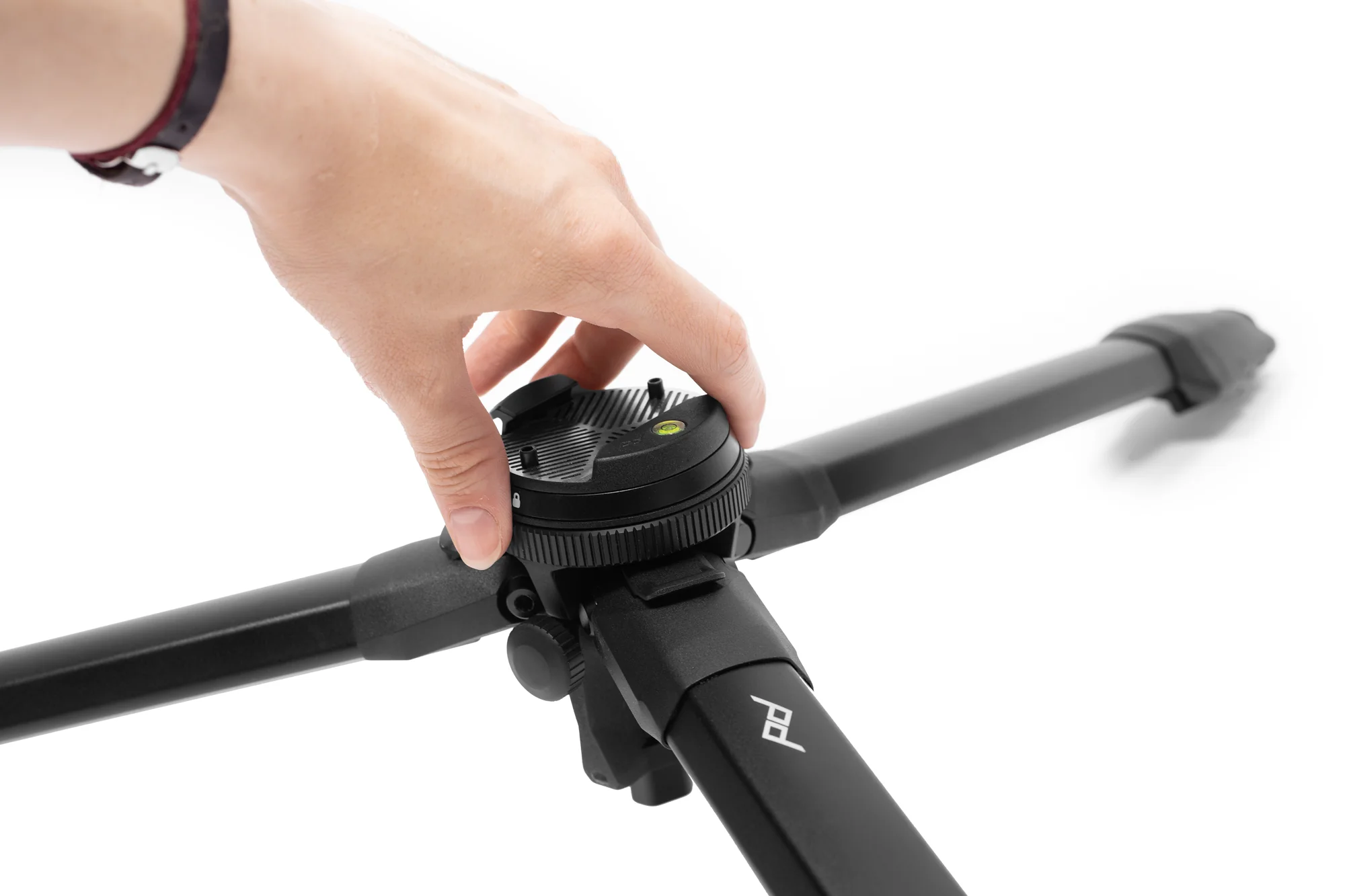

• Low and inverted modes position your camera inches off the ground
• Integrated load hanging hook
• Nonslip, shock-absorbing feet
• Anchor attachment points for carrying with Peak Design straps (sold separately)

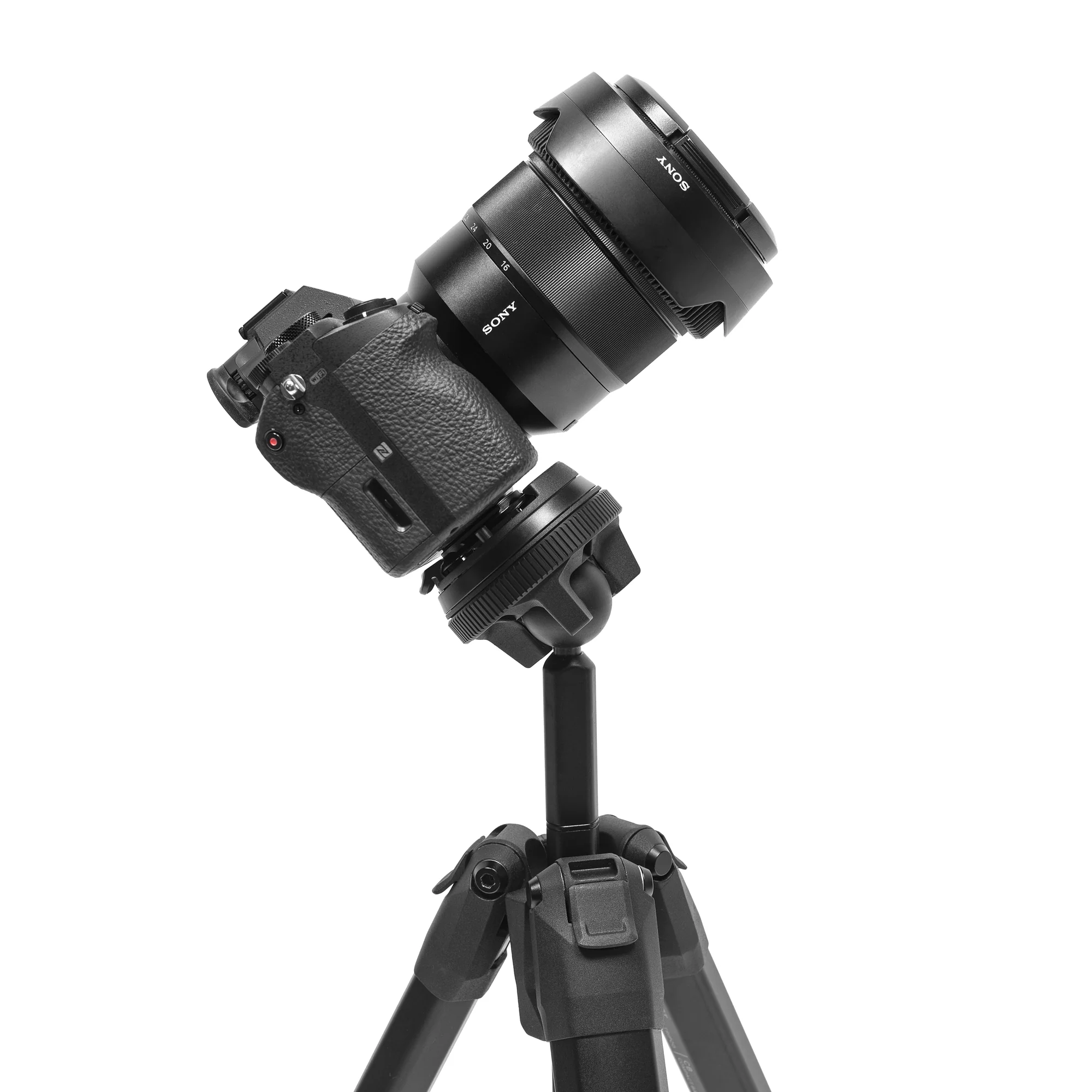

• Ultra-smooth, omnidirectional Compact Ball Head
• One single adjustment ring. No bulky or confusing knobs
• Simple locking ring for total security
• Compatible with all PD plates and most 3rd party Arca-type plates
• Removable pins allow use with most Arca-type L-brackets

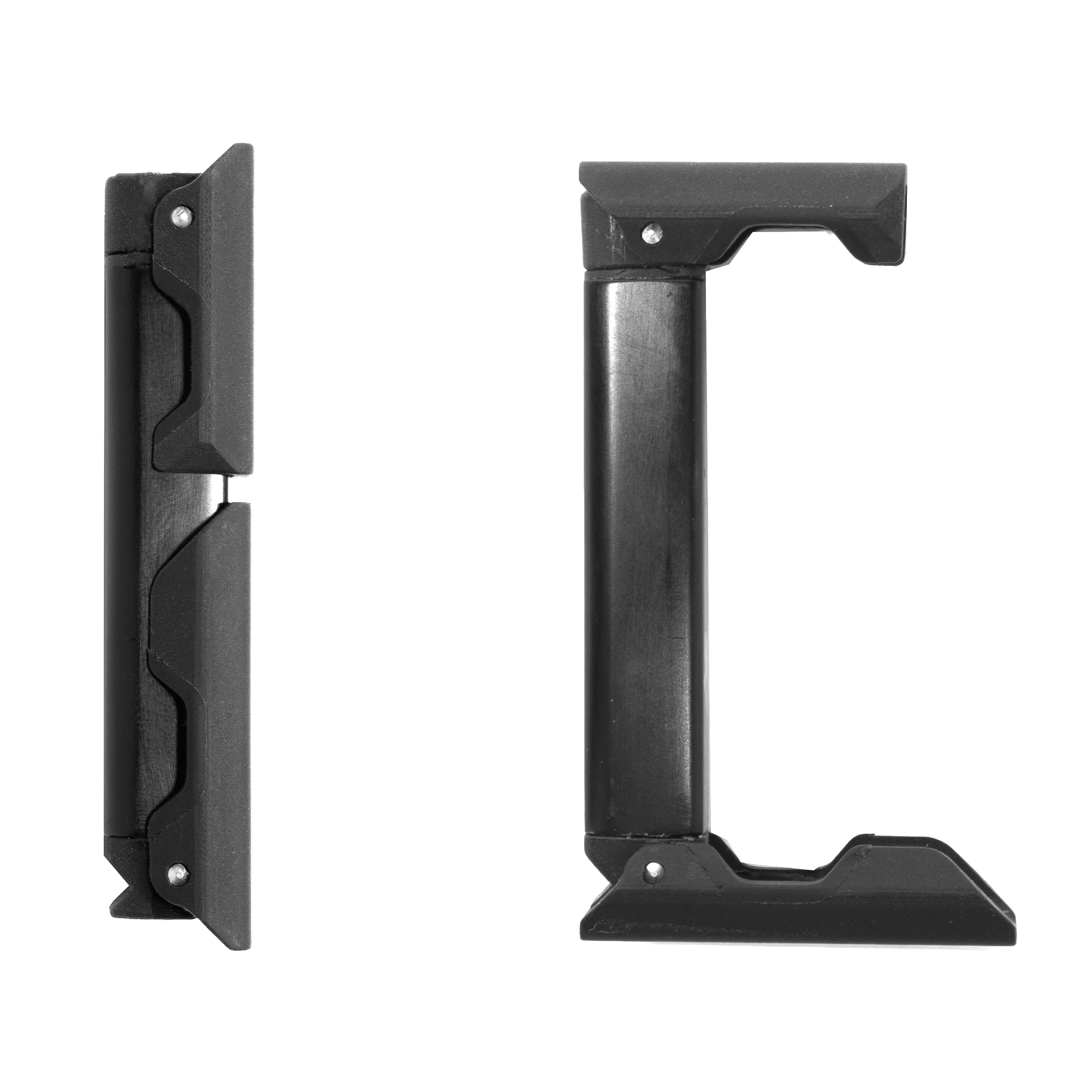

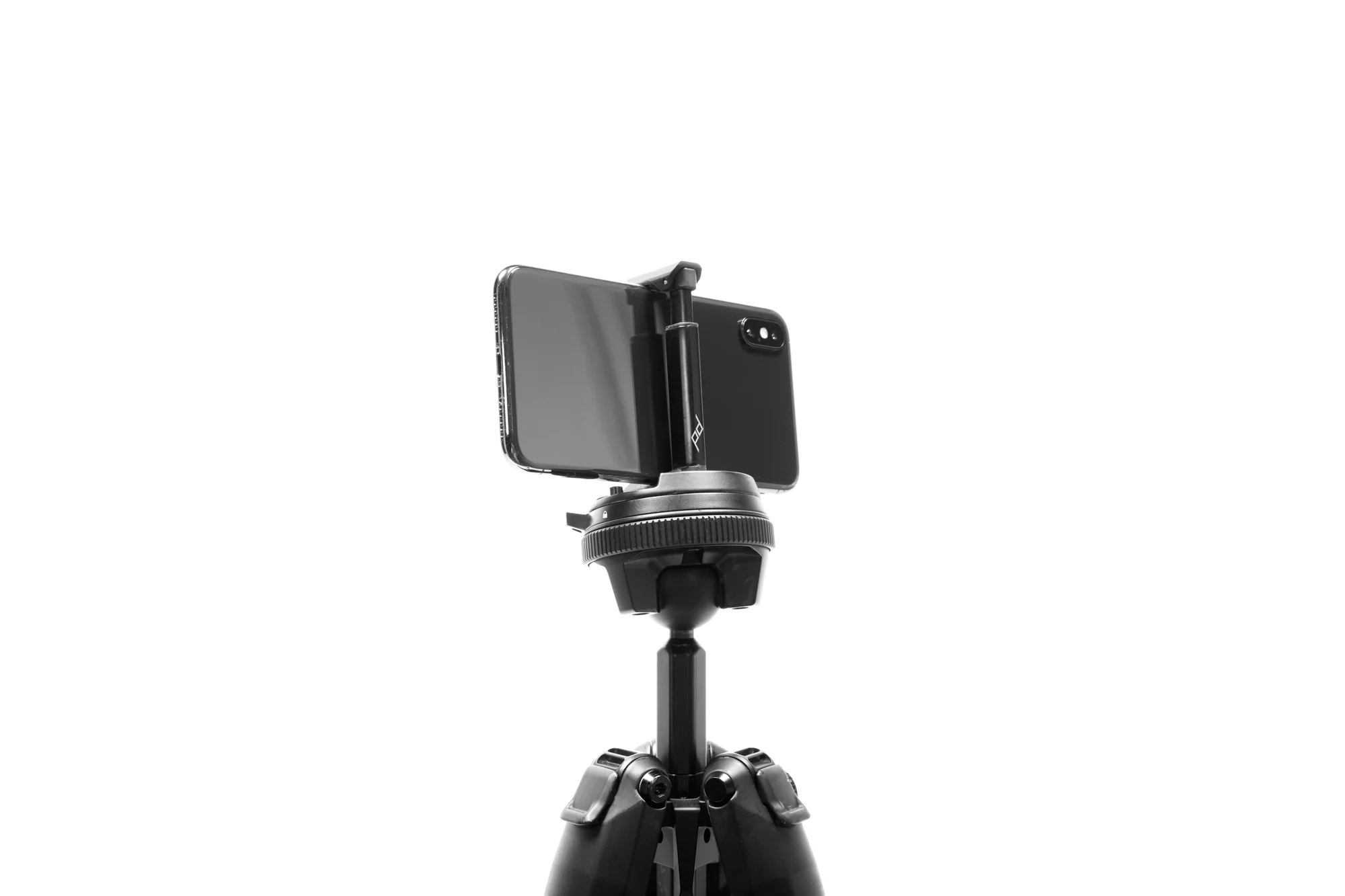

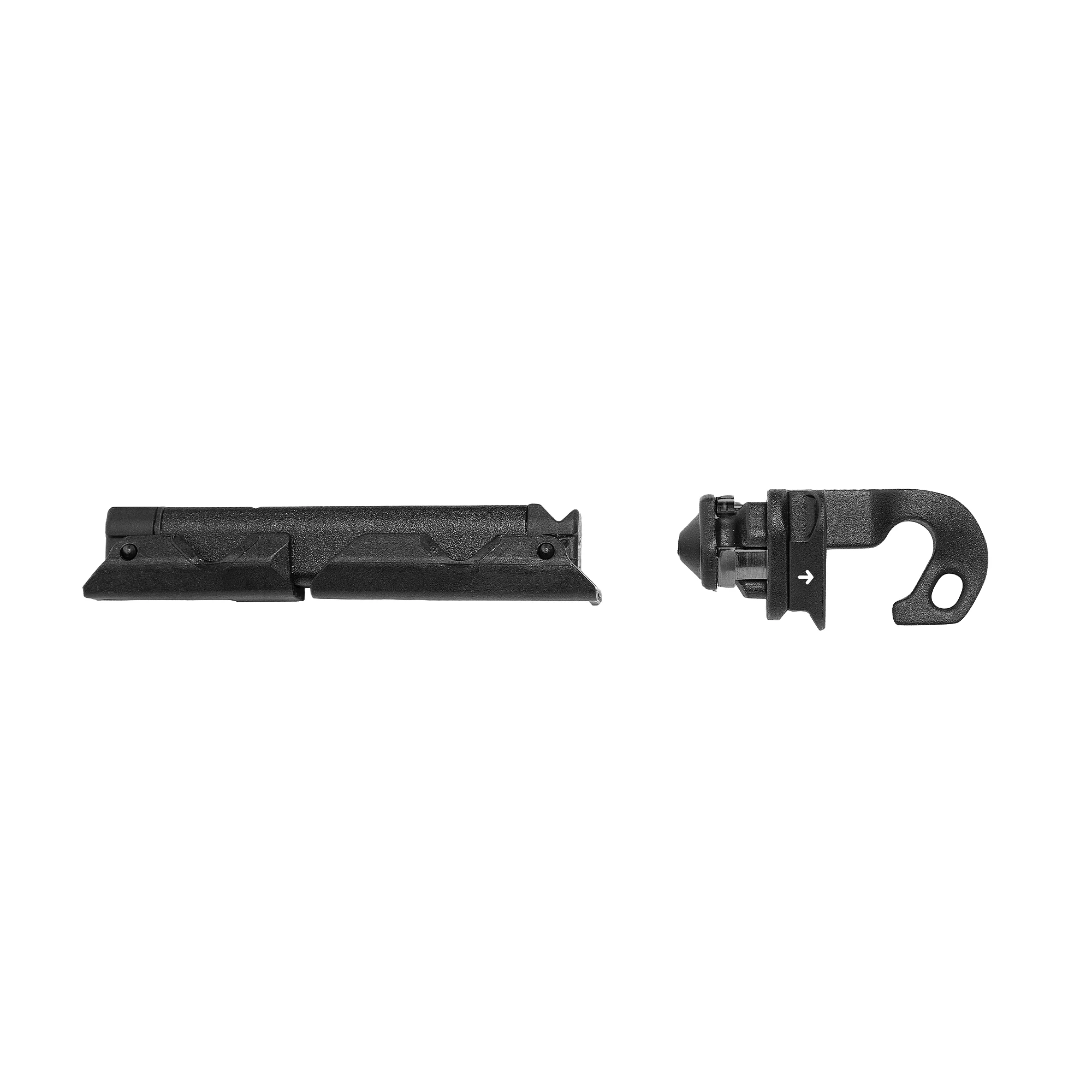

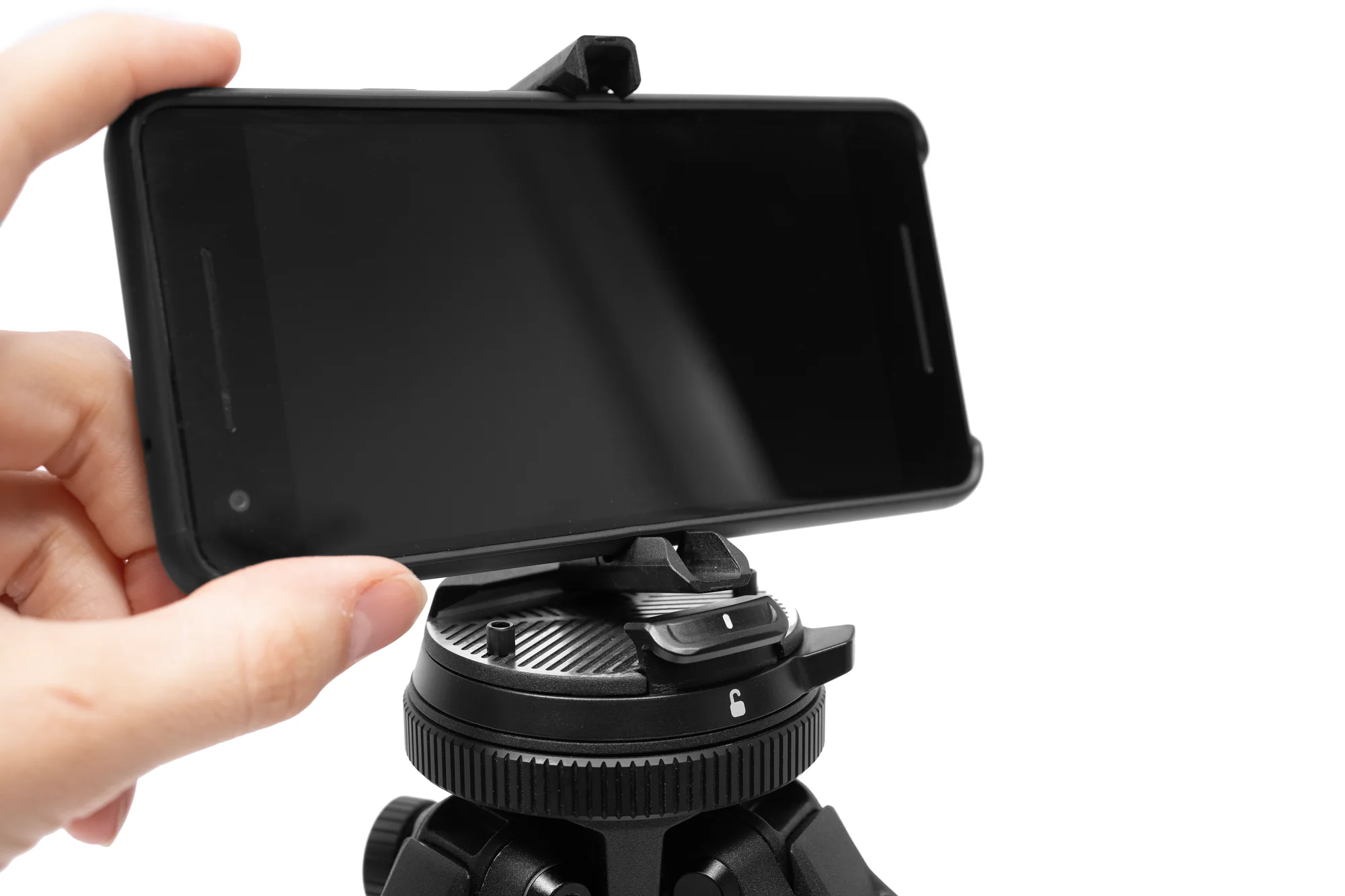

• Built-in and stowable mobile mount

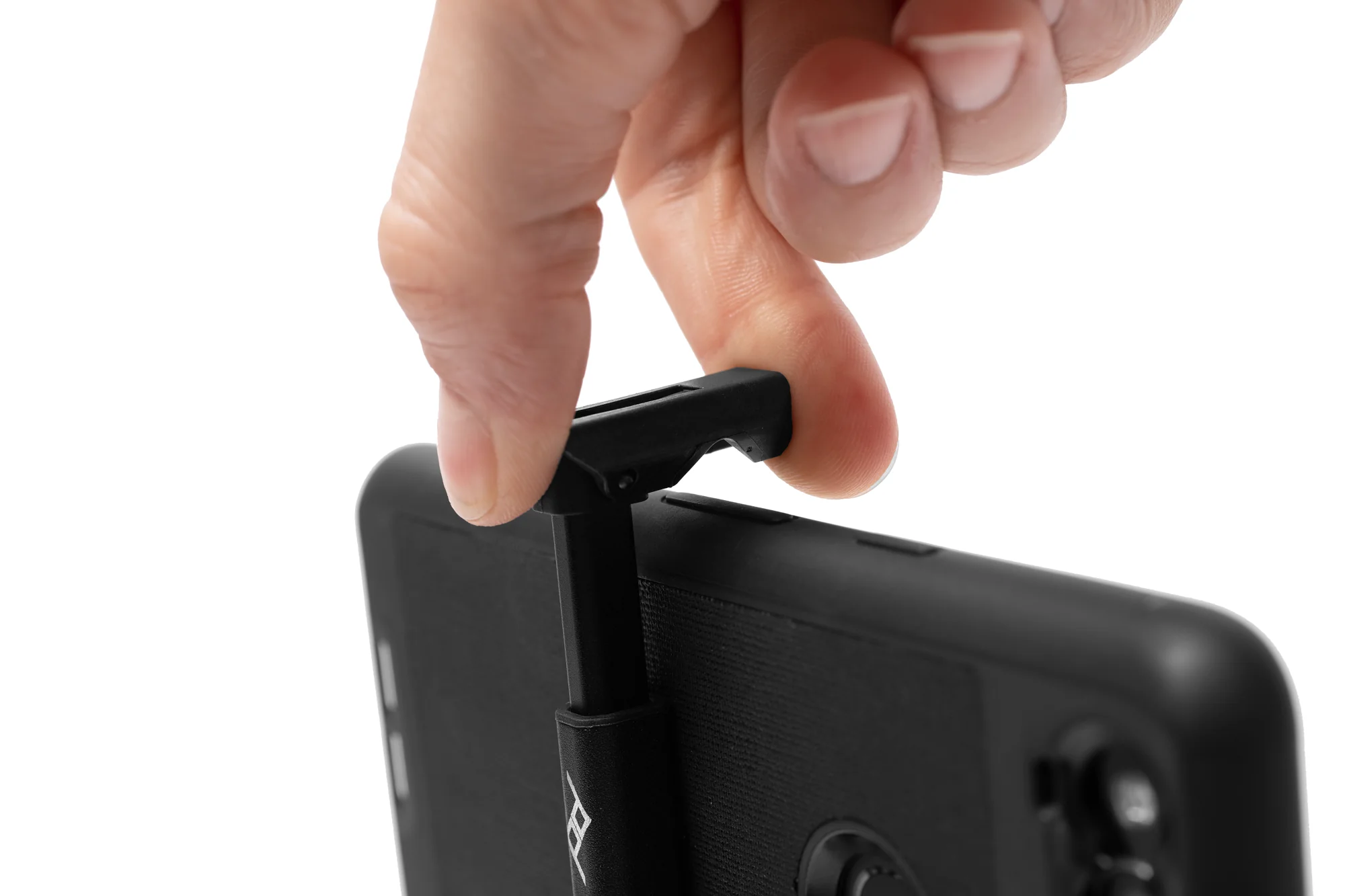

• Securely grips any phone/case
• Weather and impact-resistant materials

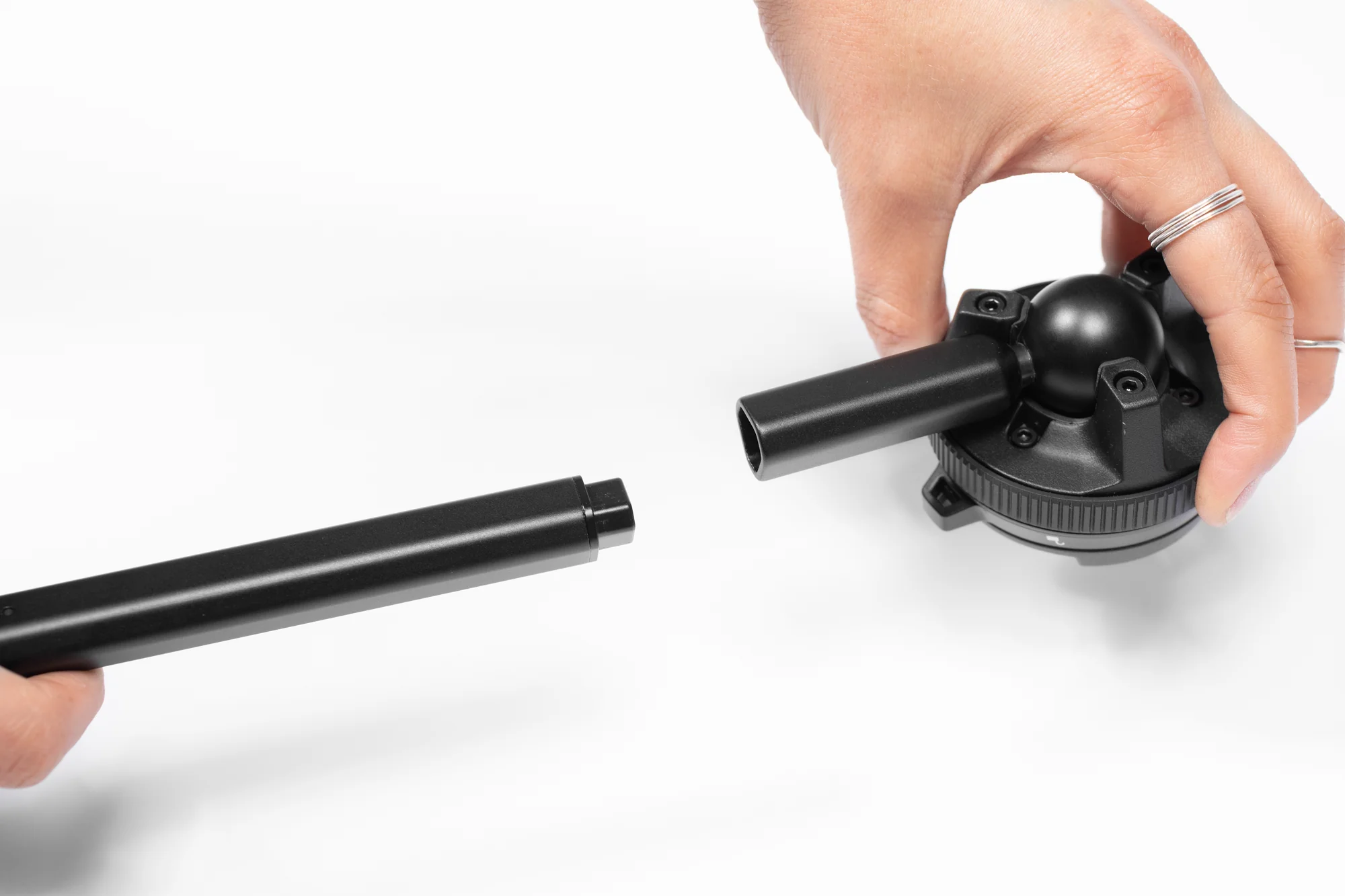

• All parts are serviceable, cleanable, and replaceable
• Includes a padded, weatherproof case
• Guaranteed for life

Compatible With:

Plates:

• All PD plates and most Arca-type plates

Dimensions:

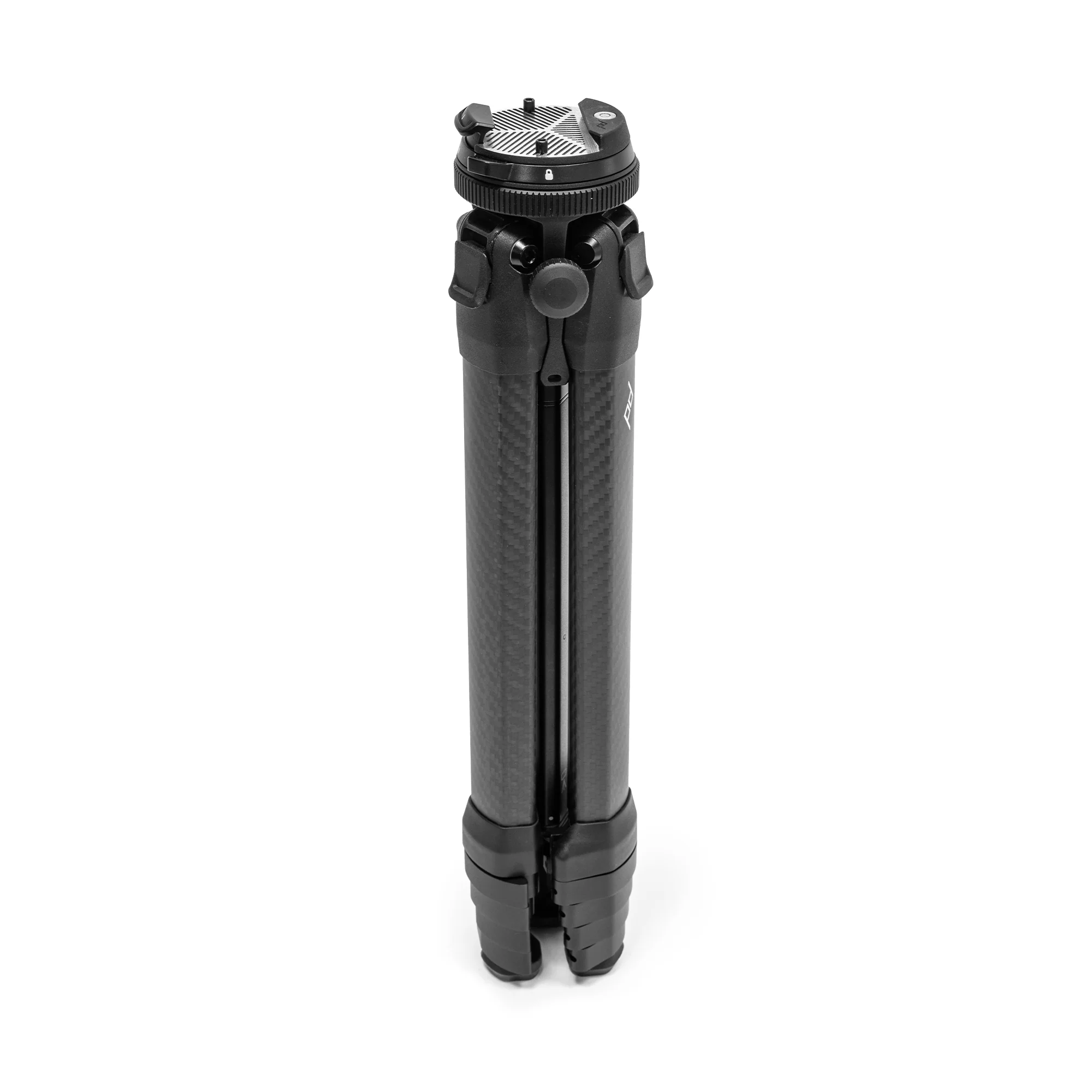

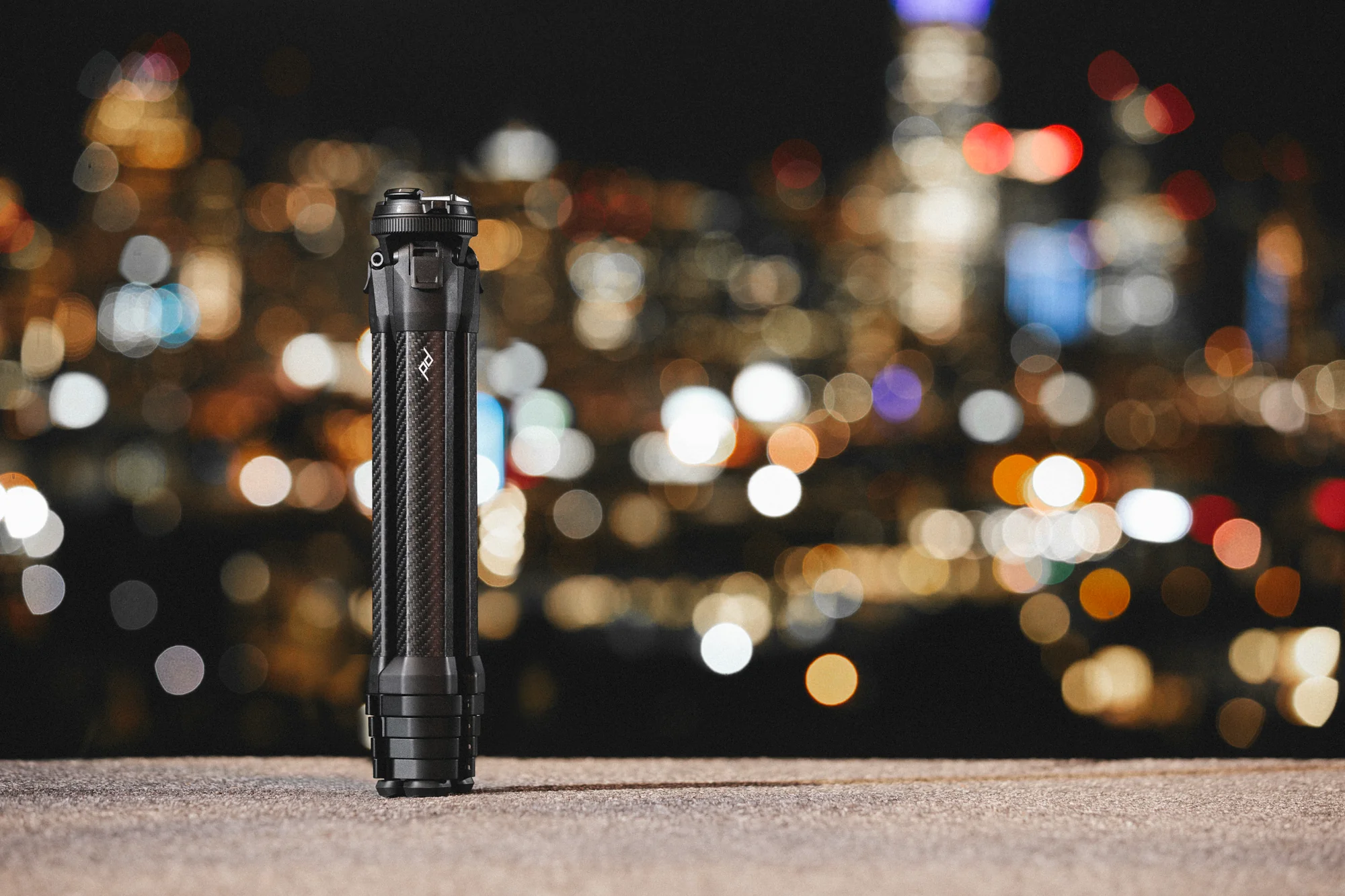

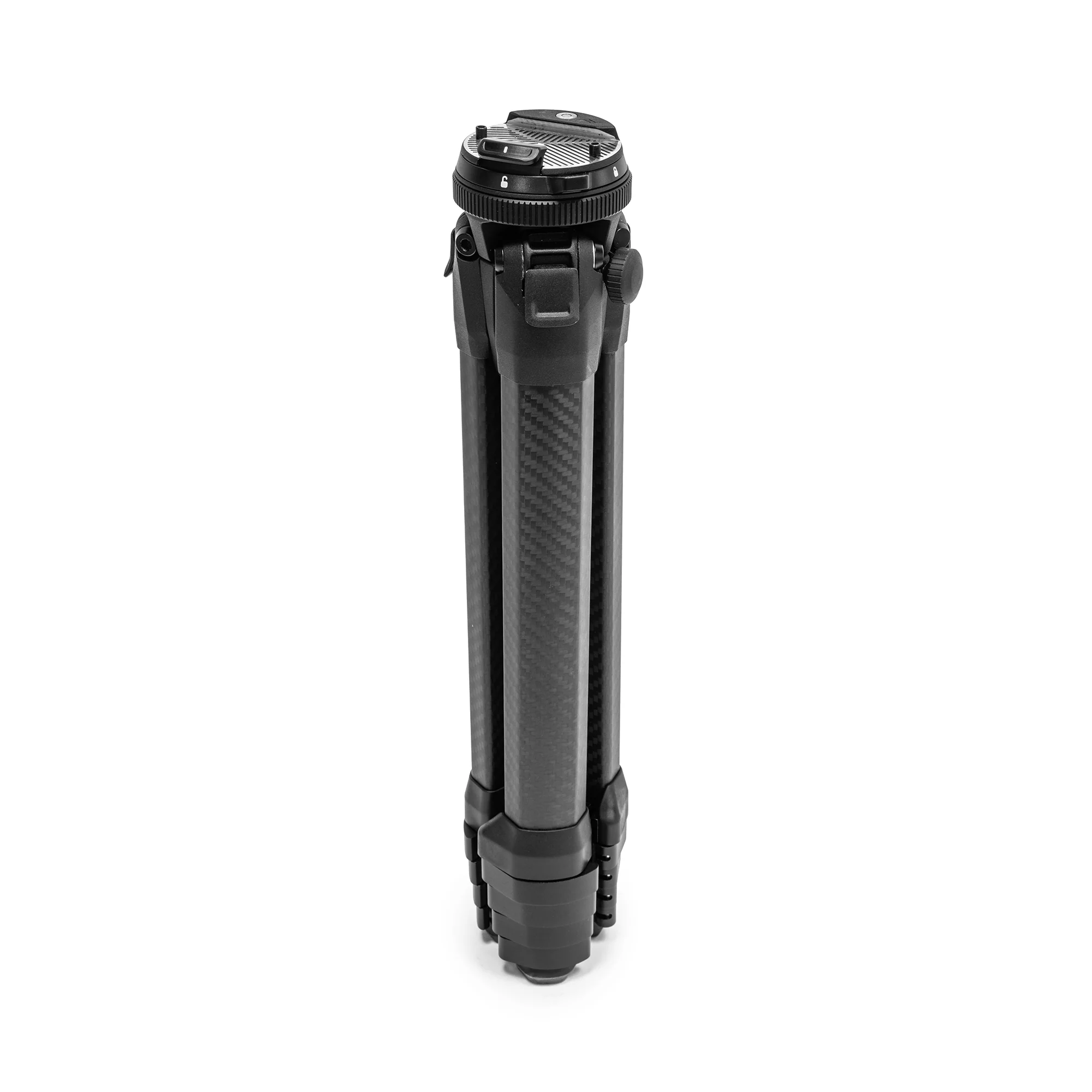

Collapsed Dimensions:
Length: 15.5”
Max Diameter: 3.25”

Deployed Dimensions:

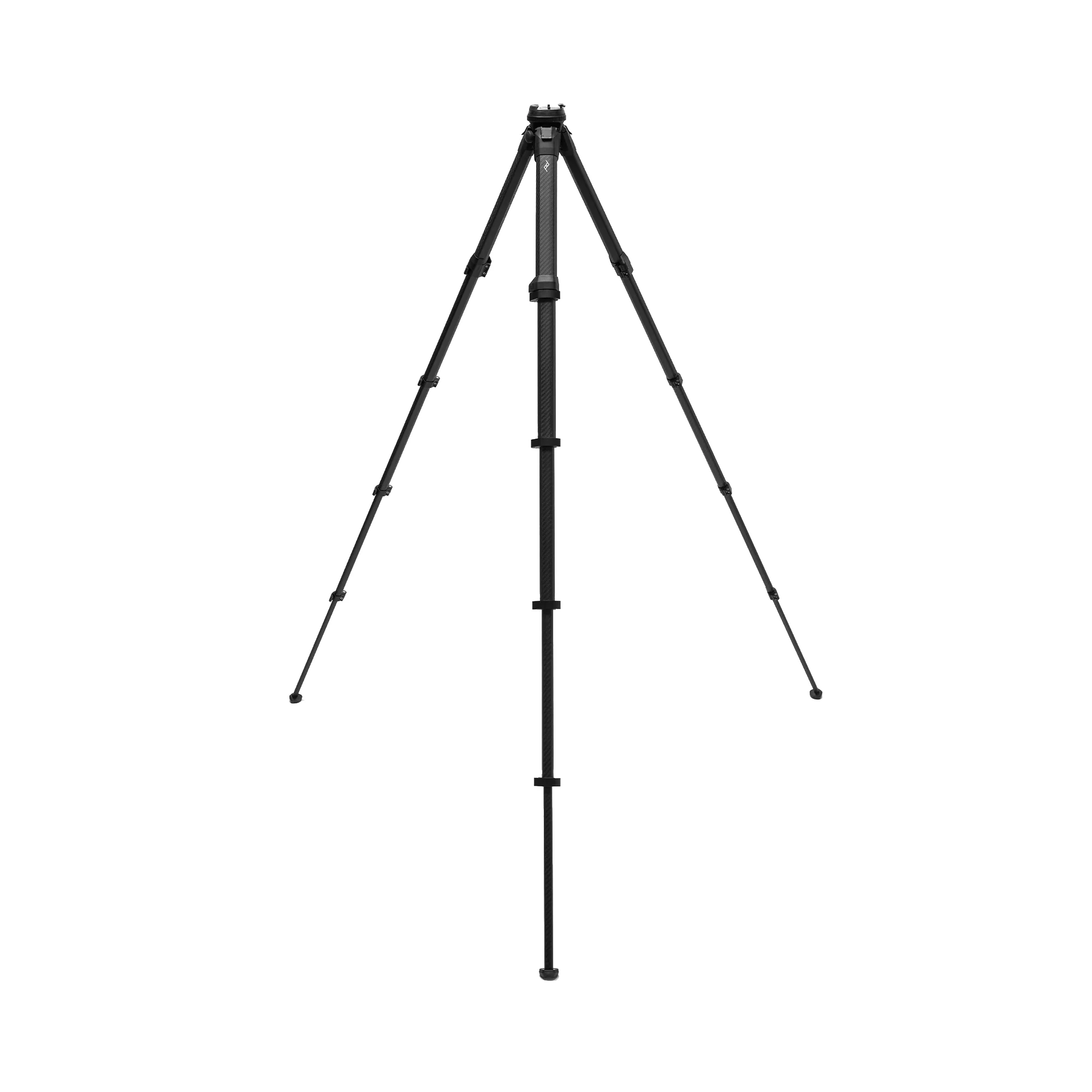

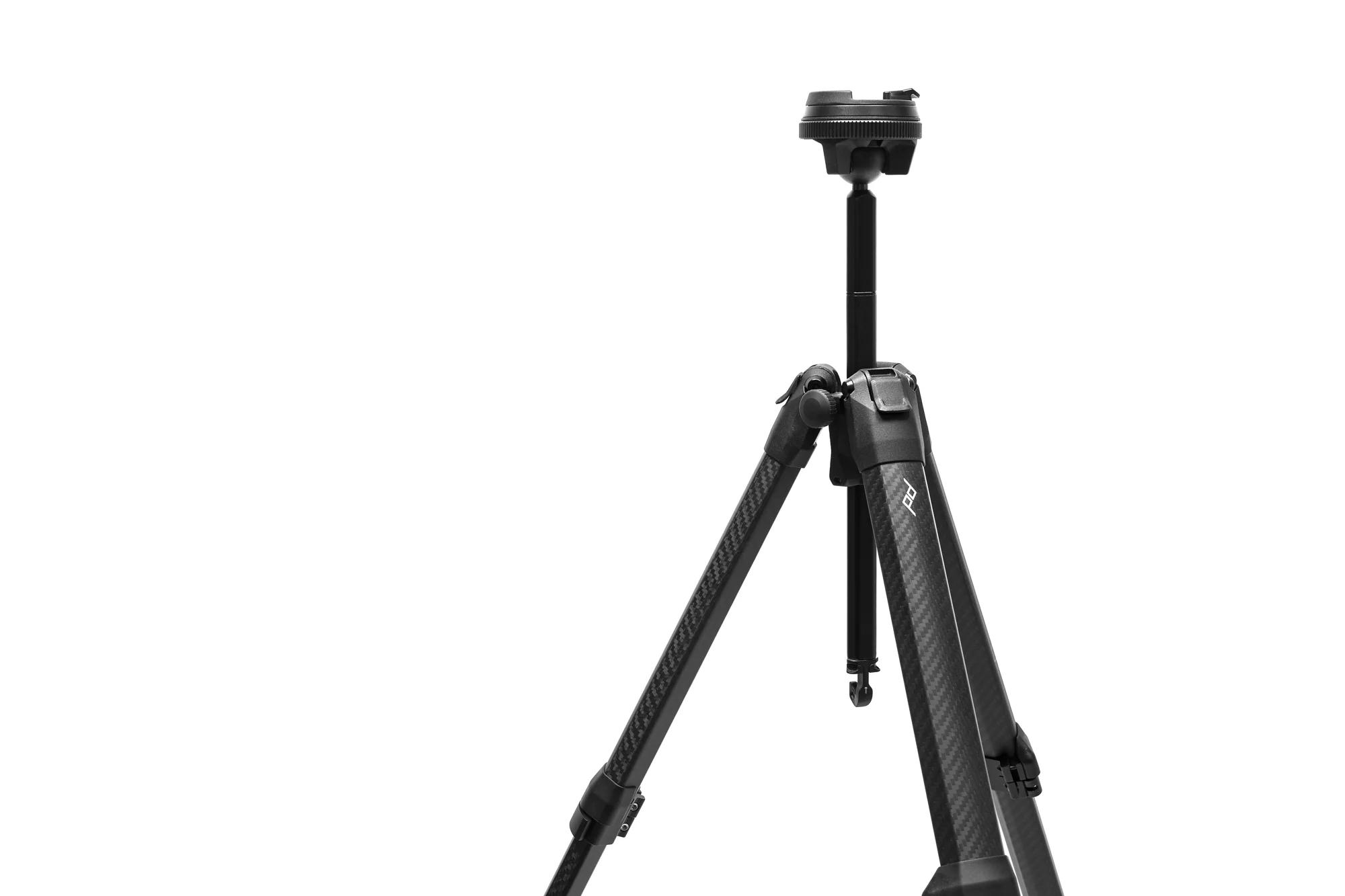

Max height (center column raised): 60"
Max height (center column down): 51.25"
Min height (low mode): 5.5"

Tripod Legs:
Leg sections: 5
Leg locks: Aluminum cams

Weight:

Aluminum Alloy: 3.44 lbs
Carbon: 2.81 lbs

Weight Capacity: 20 lbs (Optimized for pro setups, up to full-frame DSLR + telephoto lens)

Materials:

• Ball head, hub, load hook: Powdercoated A380 aluminum
• Legs: Anodized 6061-T6 aluminum (Alloy), Carbon F’n fiber (Carbon)
• Quick release, adjustment ring, center column knob: Anodized 6061-T6 aluminum
• Locking ring: Polycarbonate/ABS blend
• Feet: ShoreA60 TPU

Manufacturer SKU:

TT-CB-5-150-CF-1

In The Box:

Peak Design Carbon Fiber Travel Tripod with Ball Head

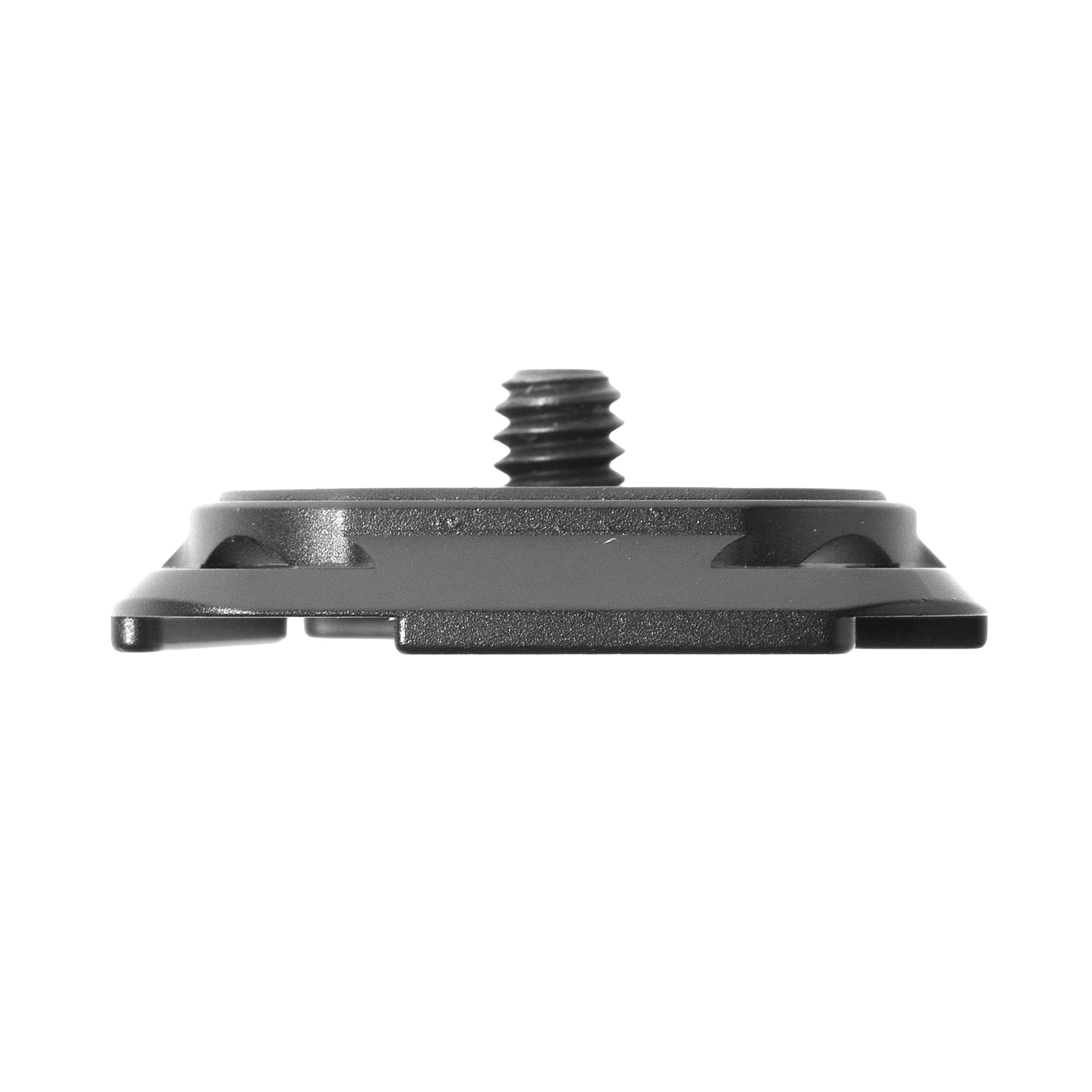

Standard Plate
Folding Hex Wrench (4 and 2.5mm)
Bushing Removal Tool
PD sticker
Tripod Bag
Limited Lifetime Manufacturer Warranty
