Portkeys BM5IV 5.5" 4K HDMI/SDI Touchscreen Monitor with Camera Control

Portkeys BM5IV 5.5" 4K HDMI/SDI Touchscreen Monitor with Camera Control

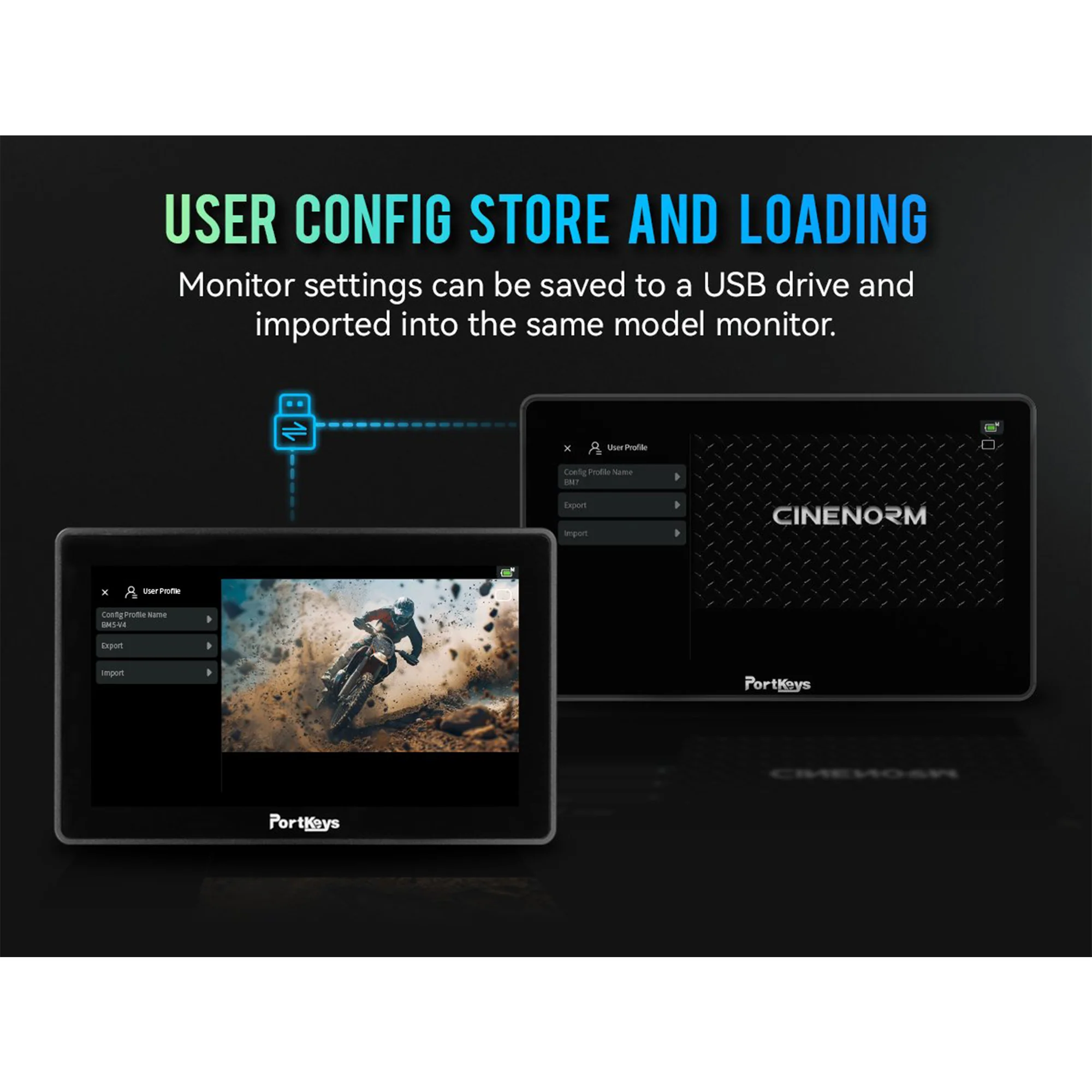

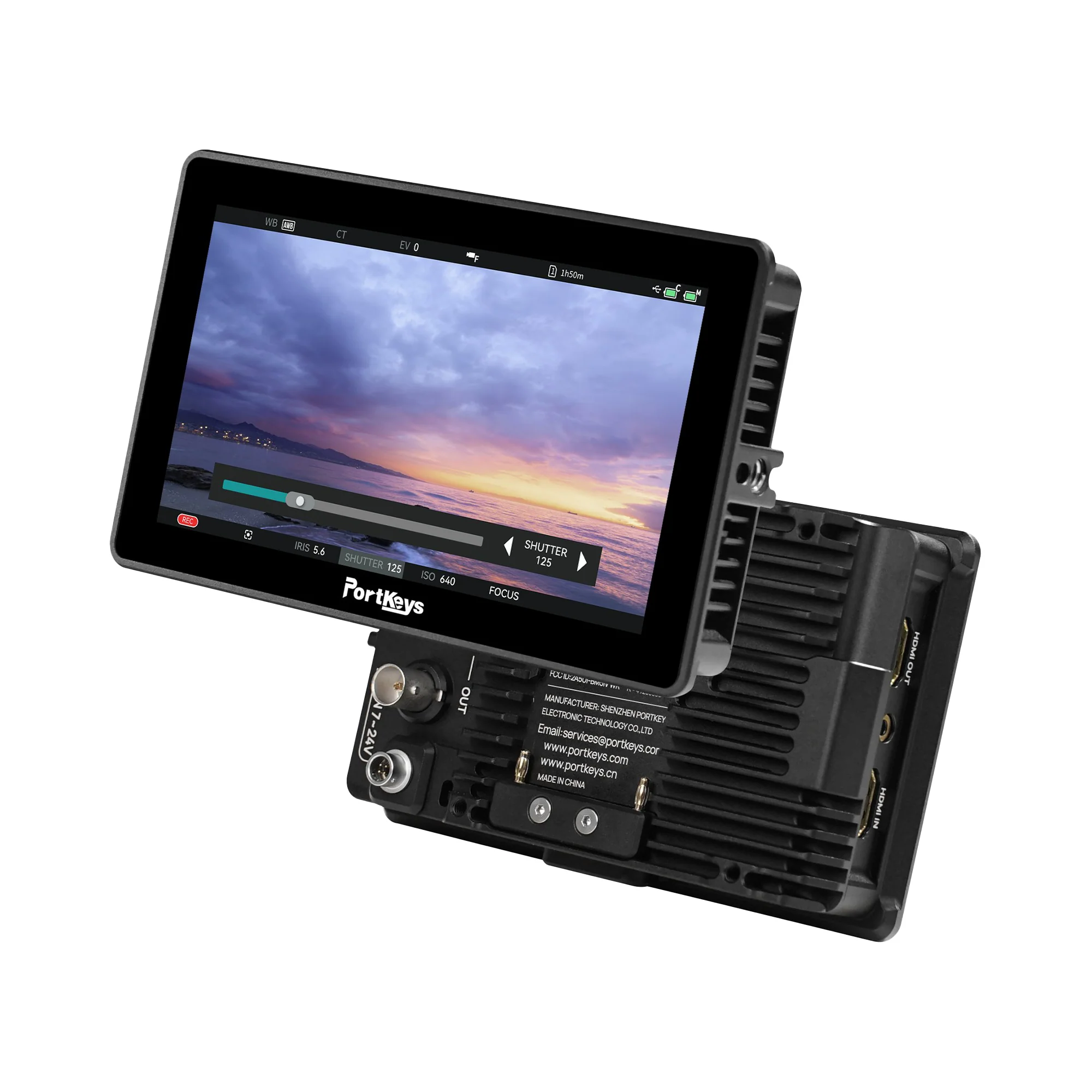

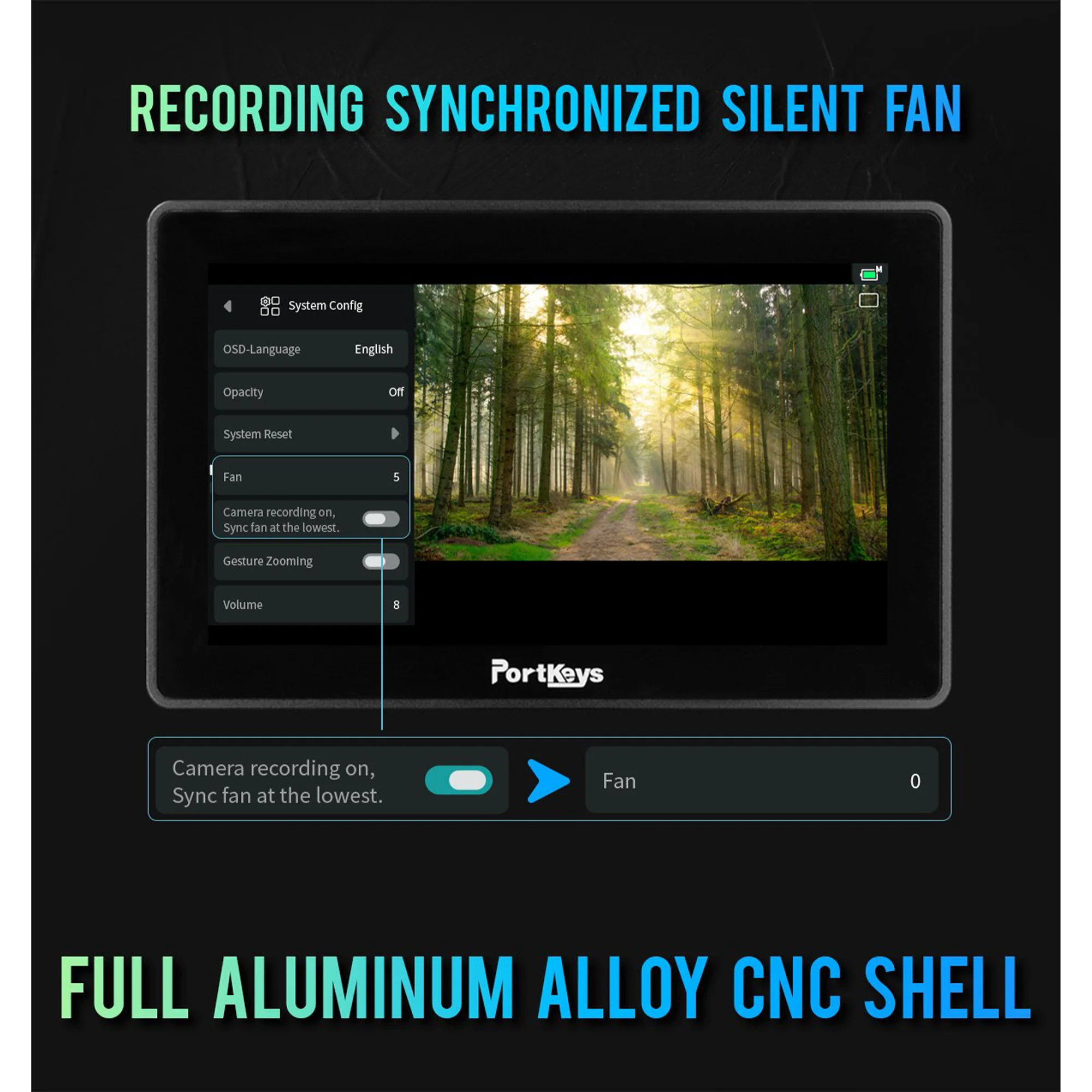

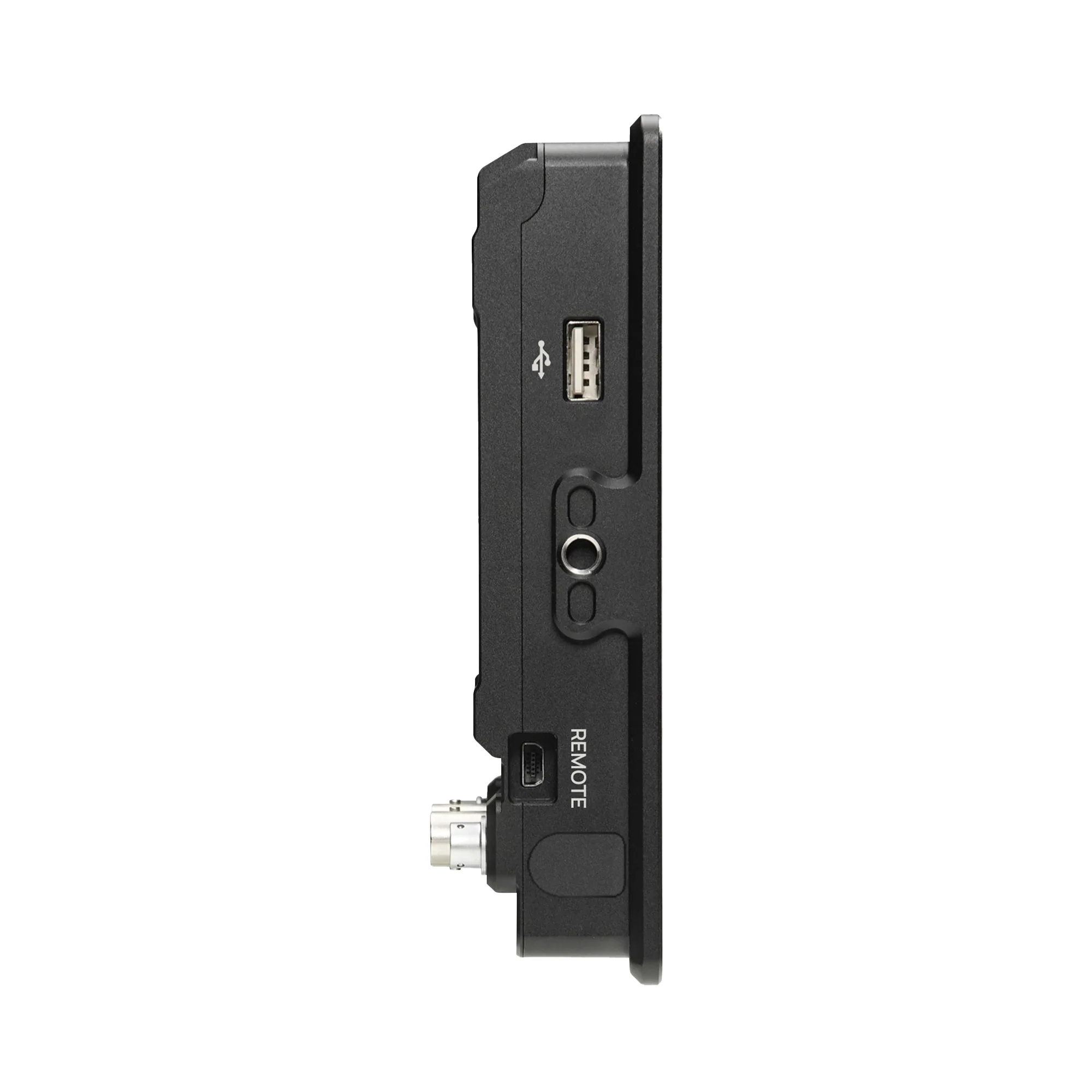

The Portkeys BM5IV is a sturdy, yet lightweight 5.5" on-camera monitor designed for professional use. With a wide color gamut and impressive 2,000 nit brightness, this monitor features HDMI/SDI video input and output ports, along with wired camera control capabilities. The HDMI ports support up to 4K60 video, while the SDI ports can handle up to 1080p60. Additionally, a USB-A port allows for easy firmware updates and 3D LUT uploads. Its robust aluminum alloy construction ensures durability on set, and the integrated fan can be easily adjusted for minimal audio distortion during recording.

Features:

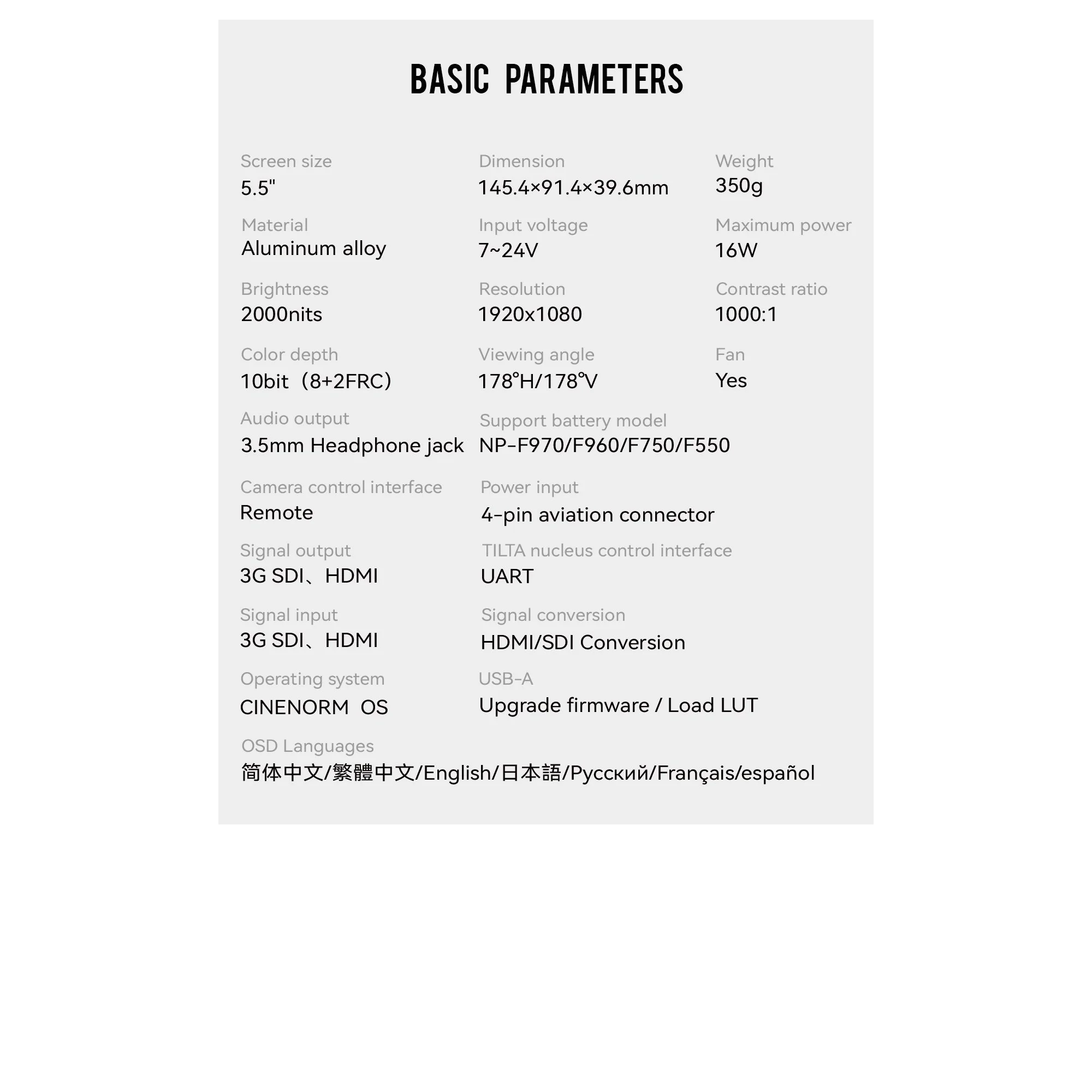

• 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio

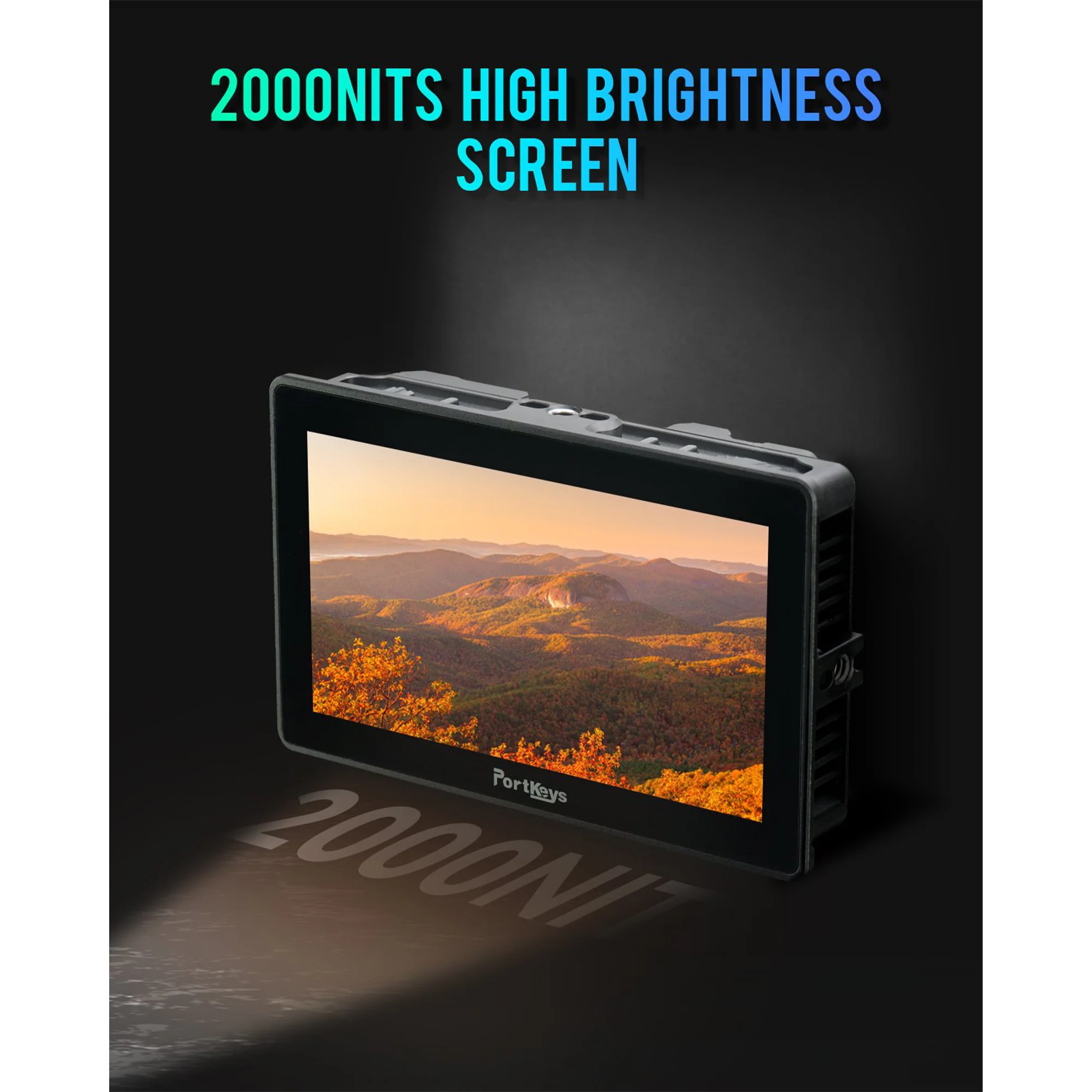

• Daylight-viewable with a maximum brightness of 2,000nits

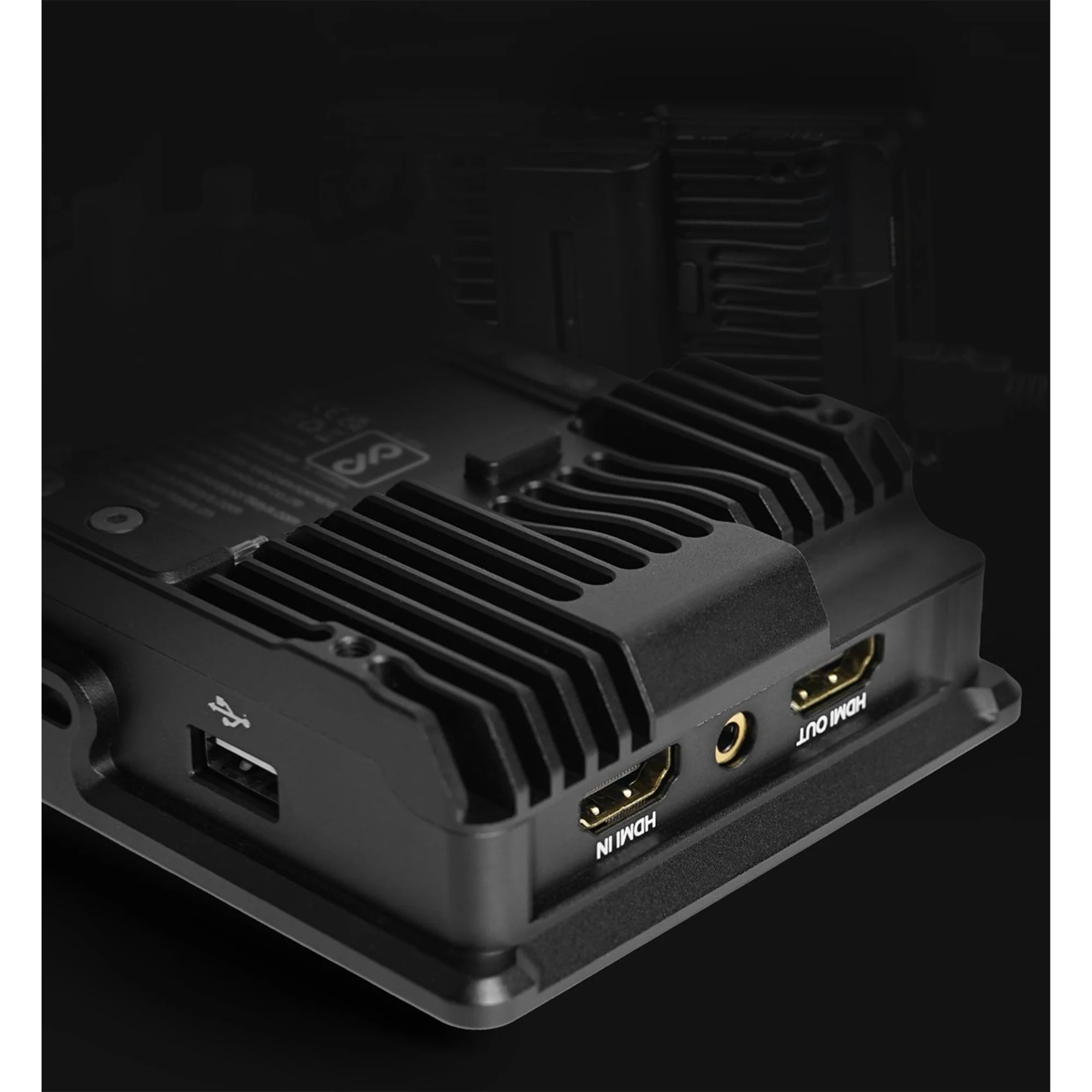

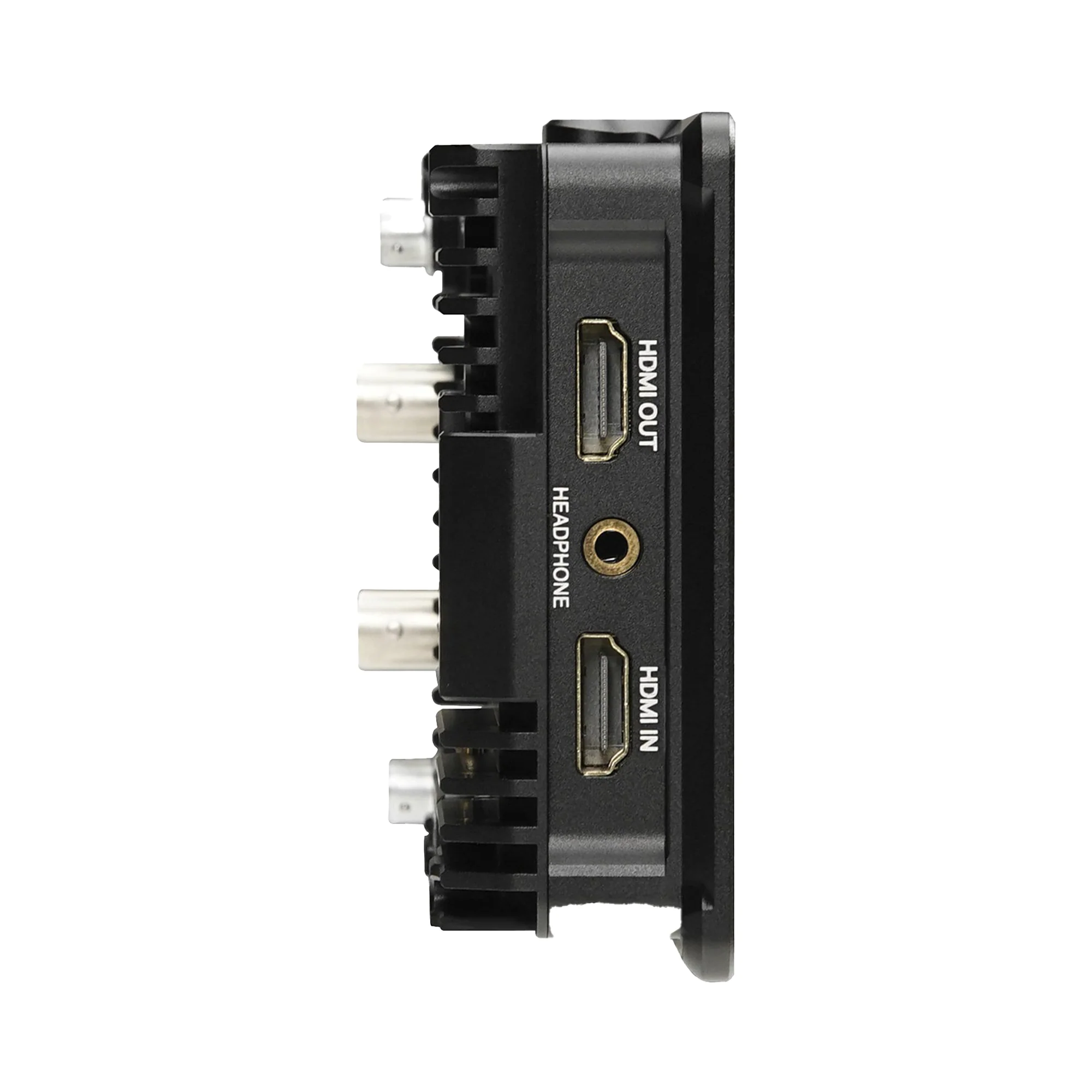

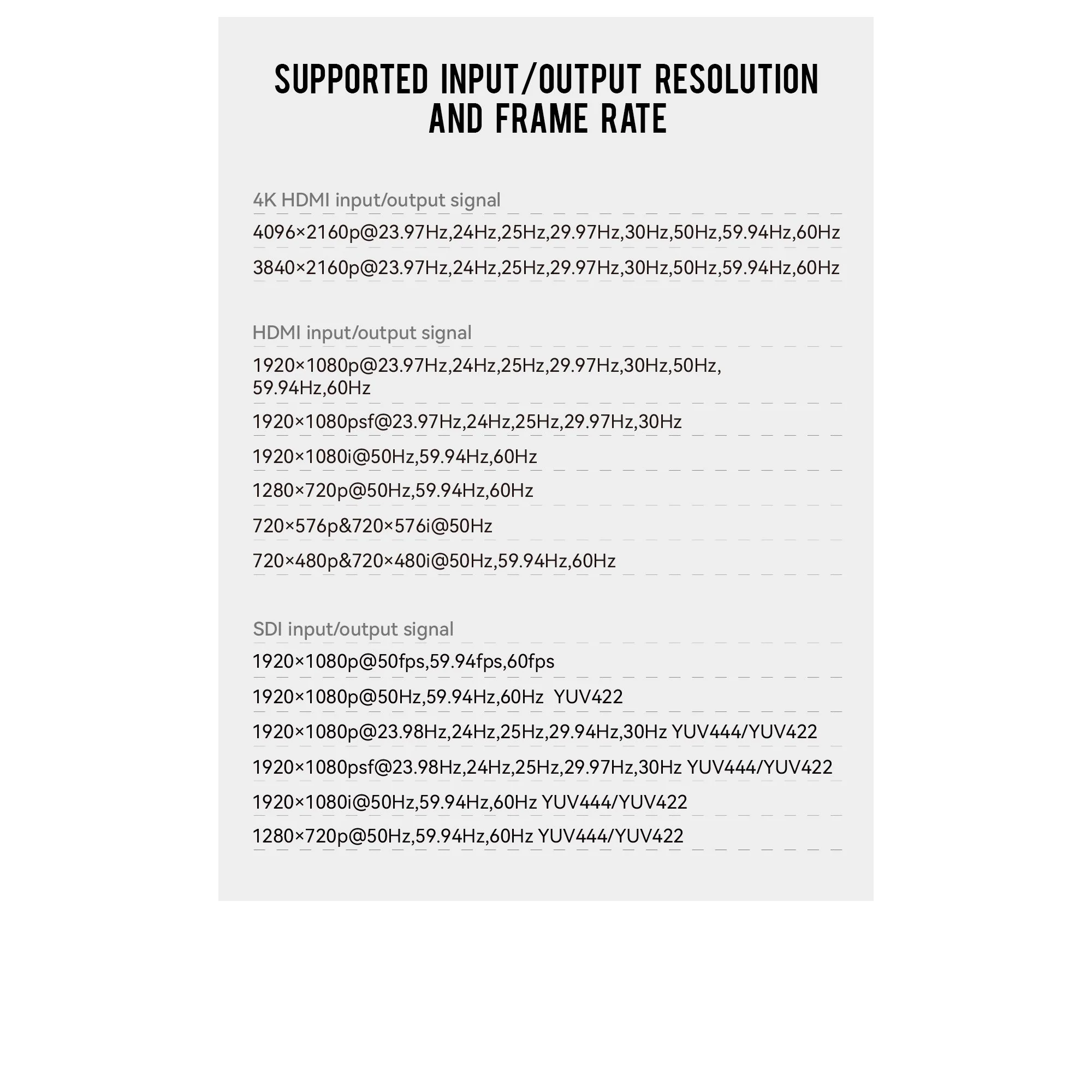

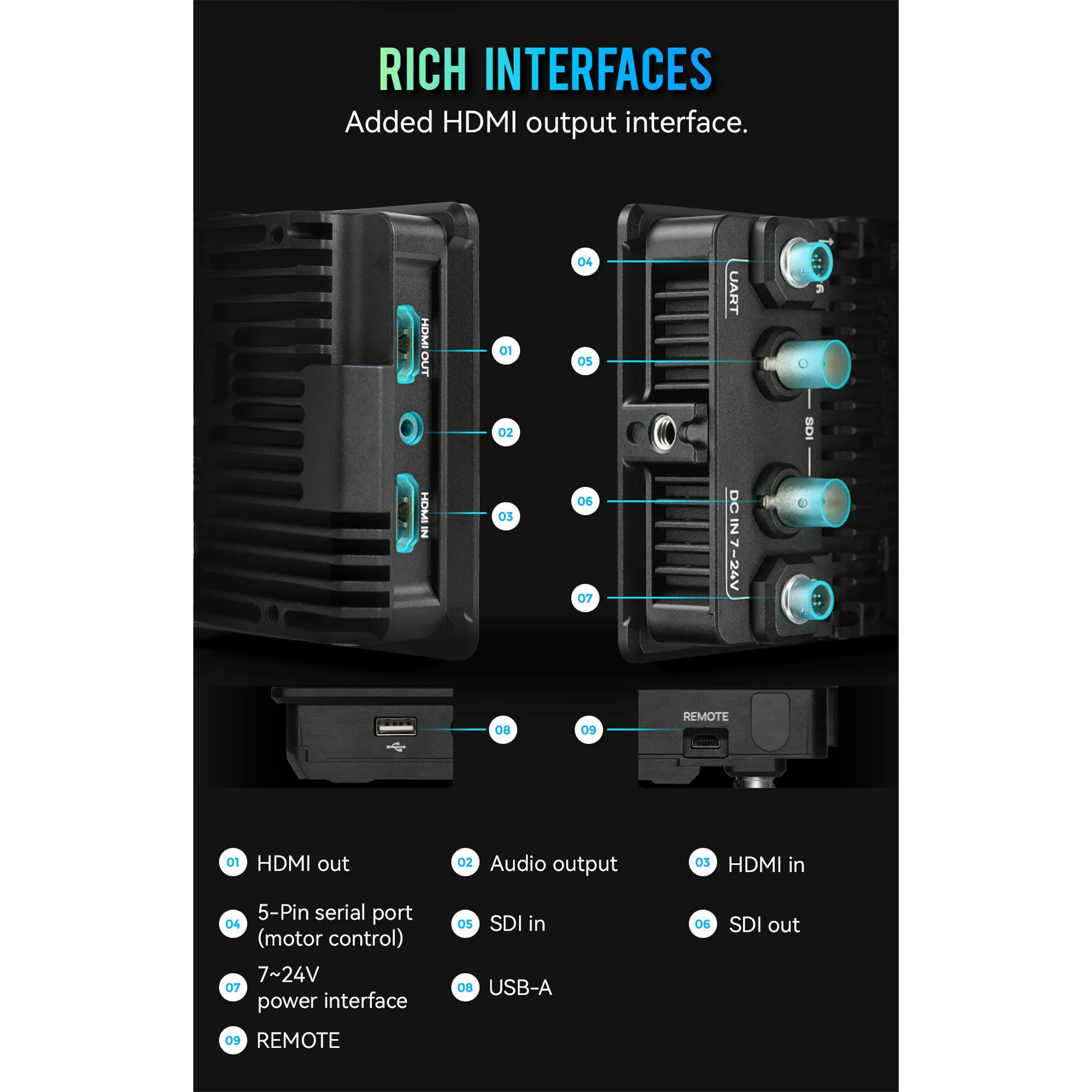

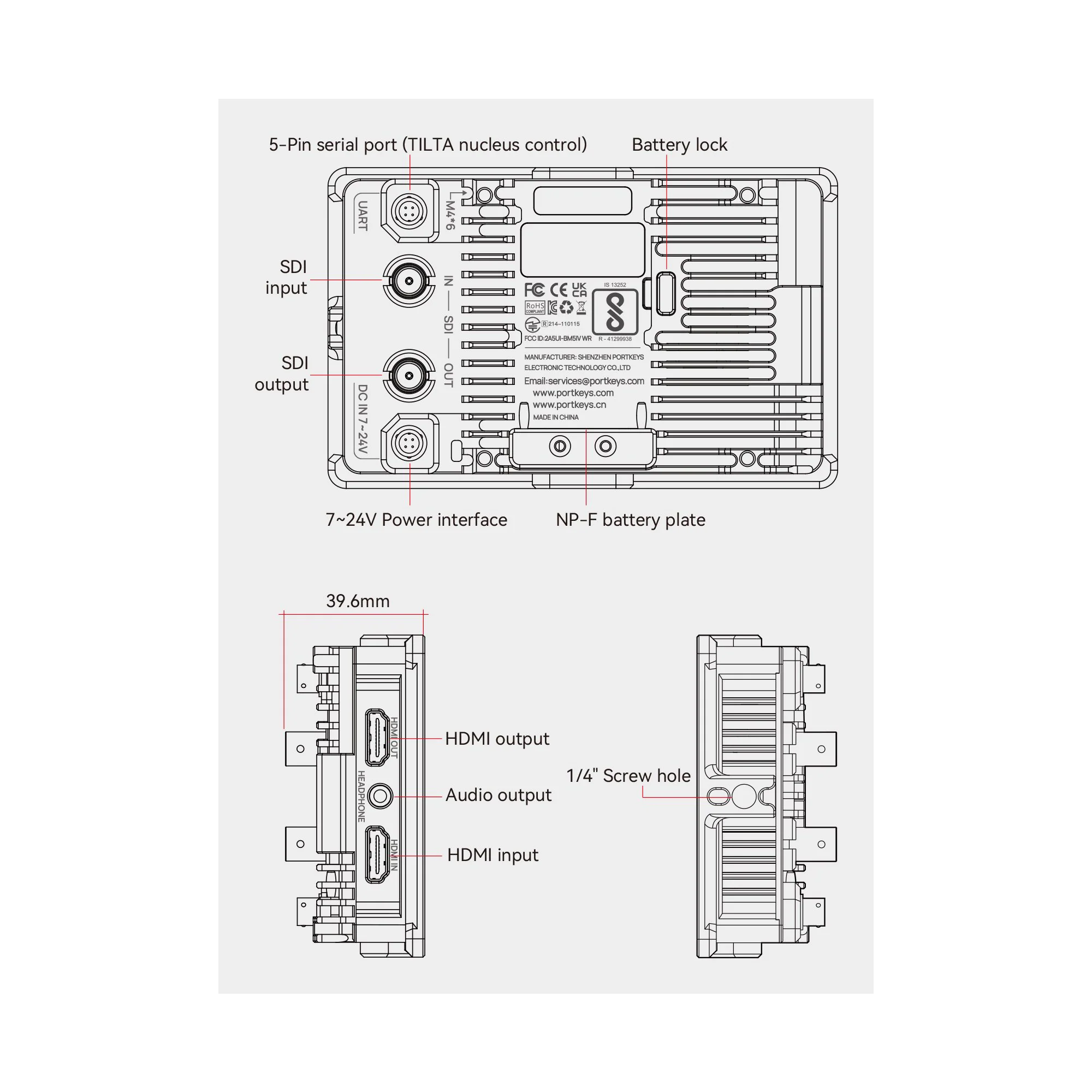

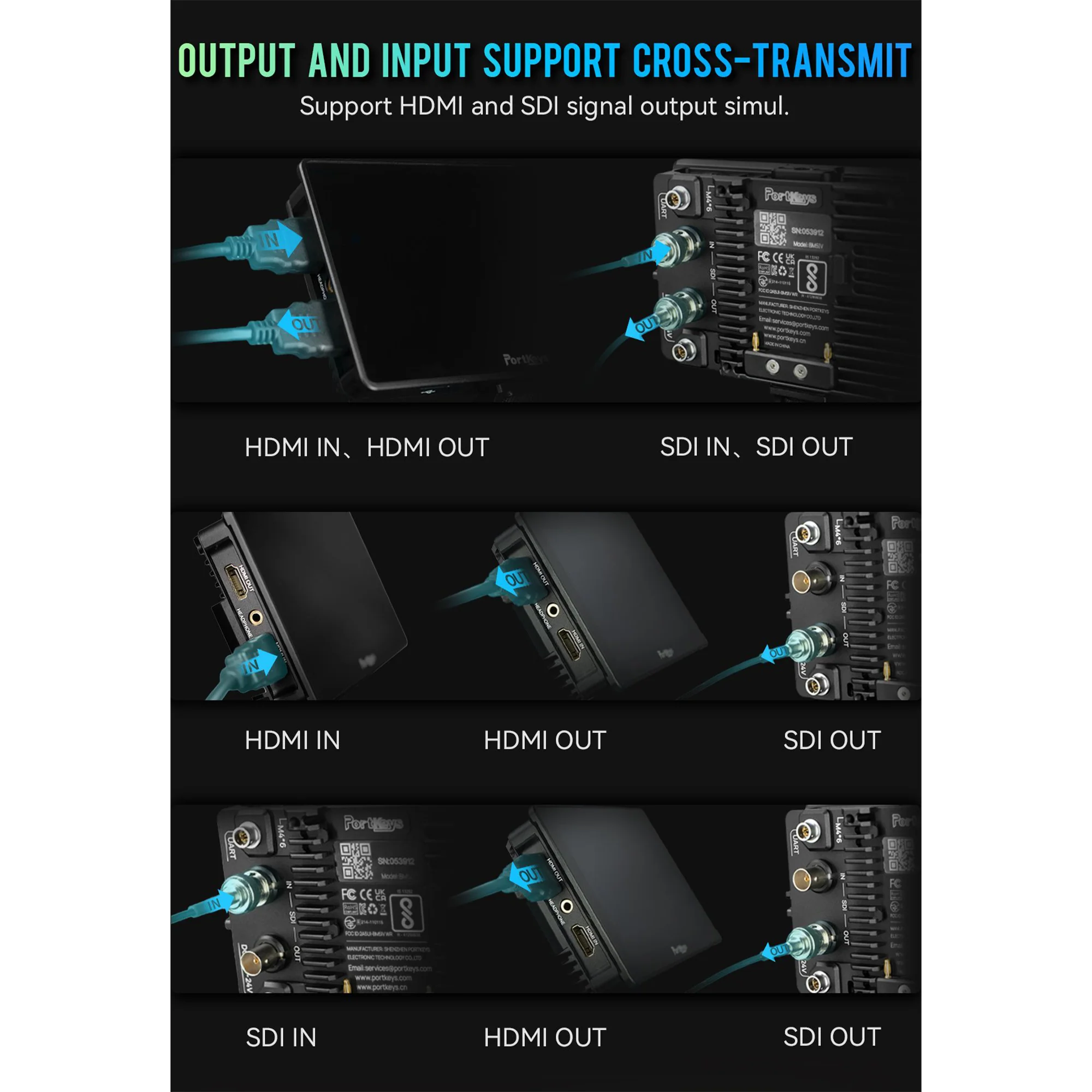

• 1x 4K60P HDMI input, 1x 3G-SDI input, 1x 4K60P HDMI output, 1x 3G-SDI output with cross-conversion

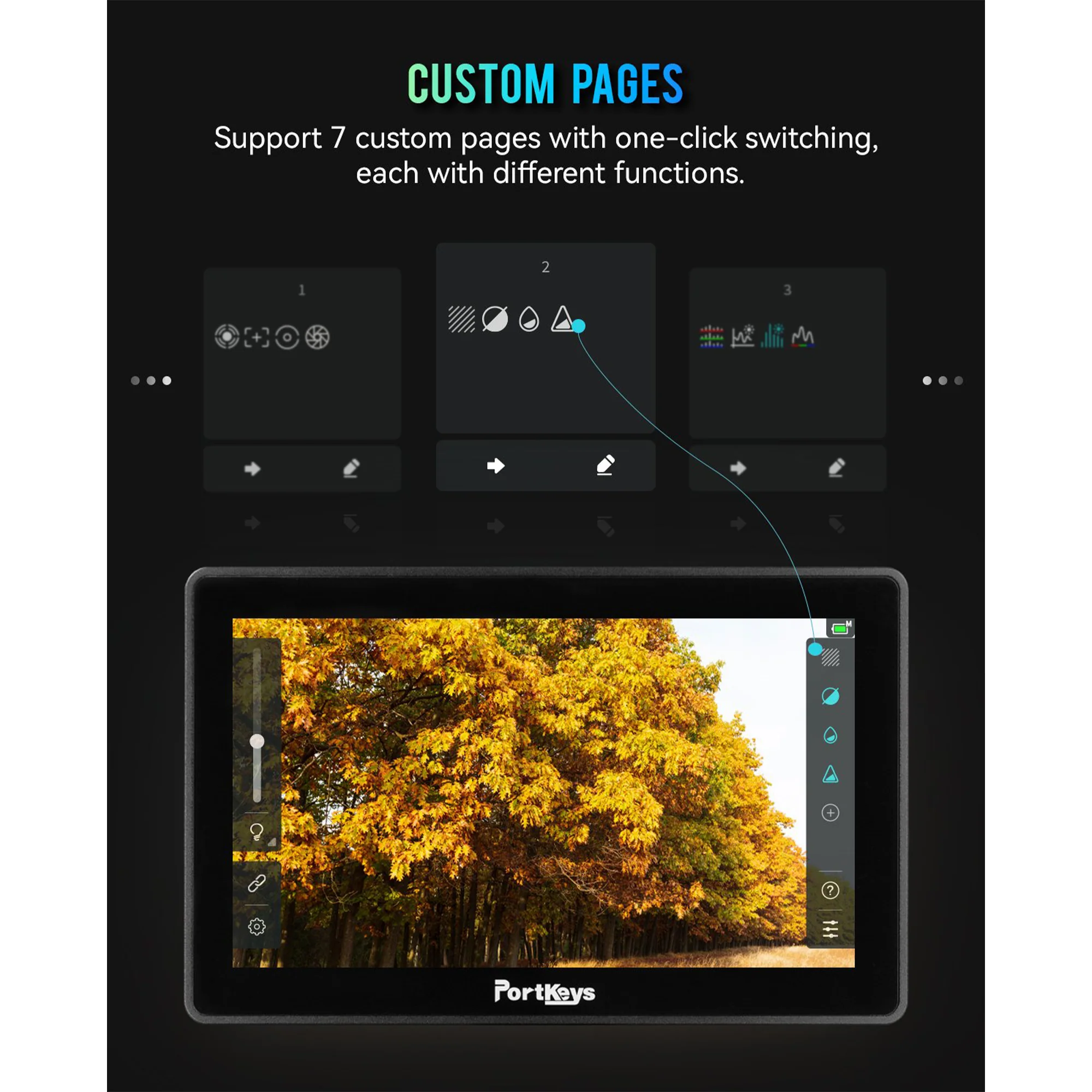

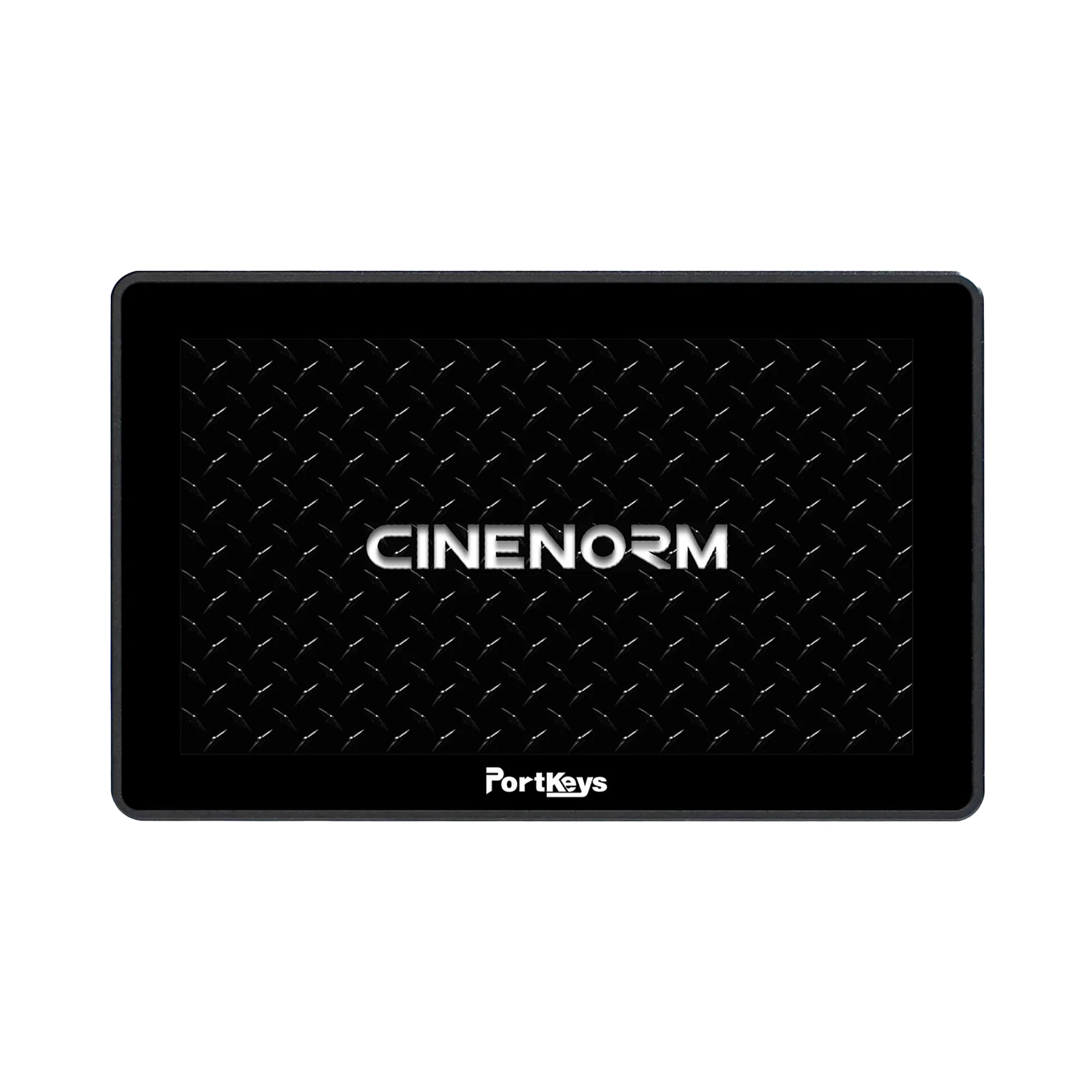

• Powered by CINENORM OS, which supports up to 7 custom pages

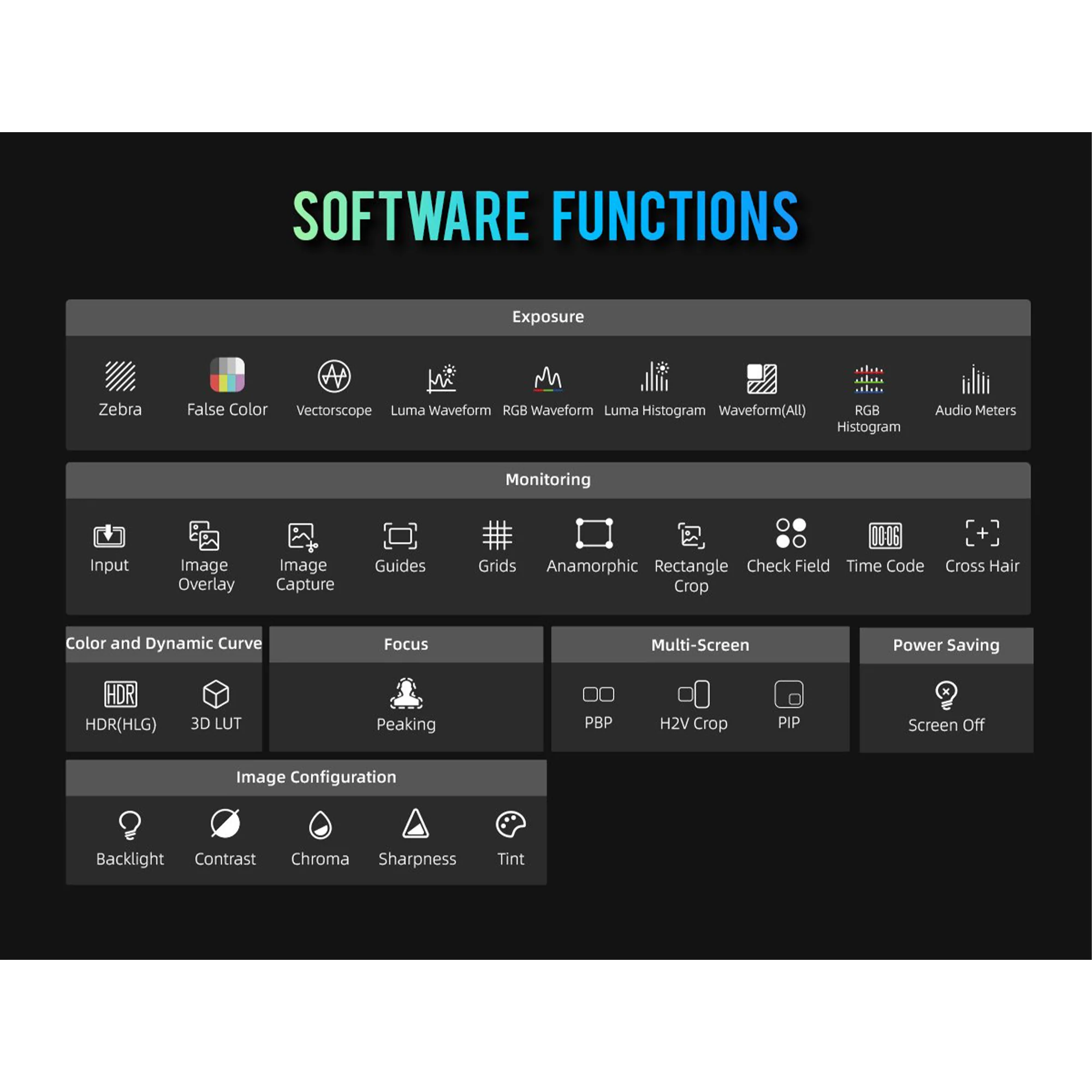

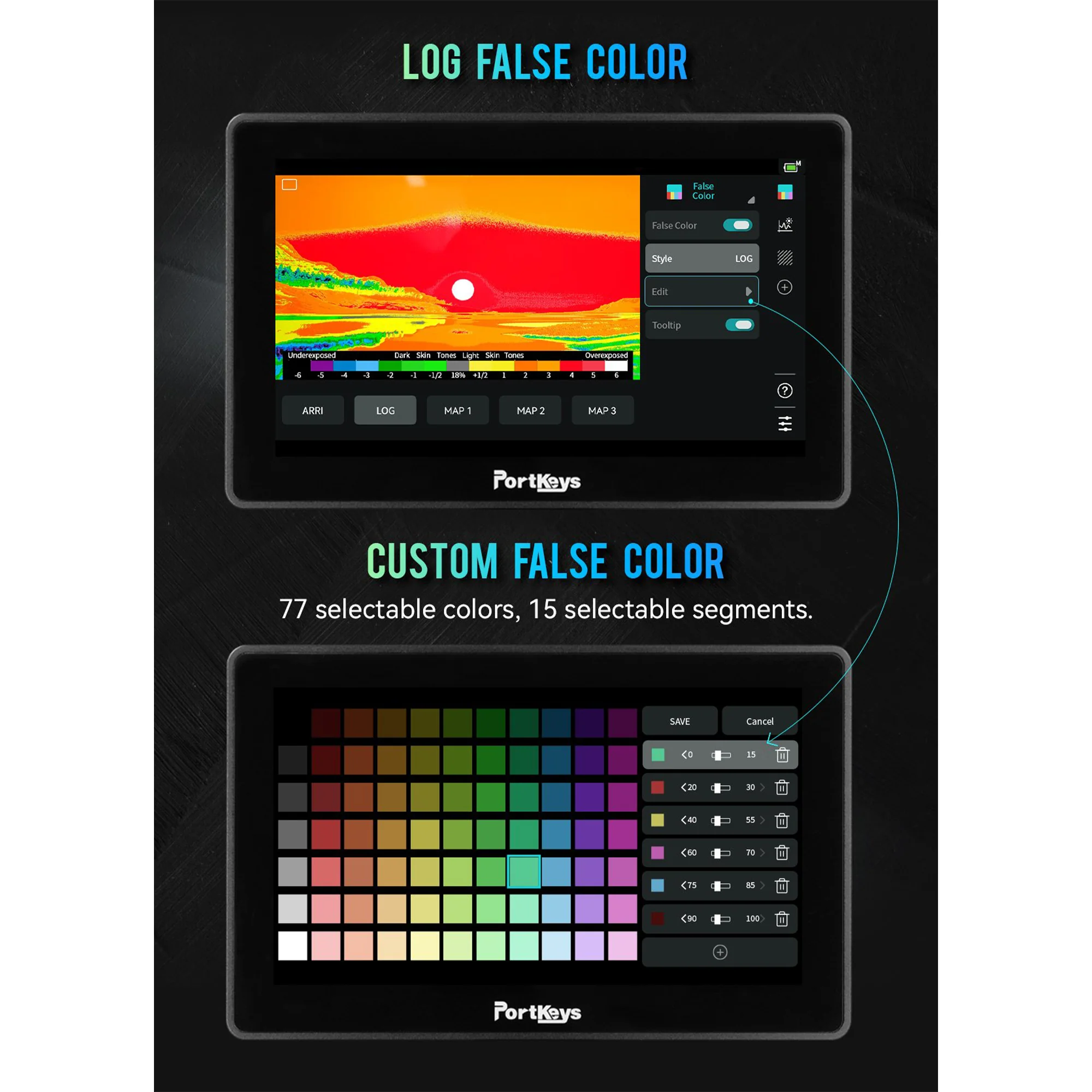

• Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color

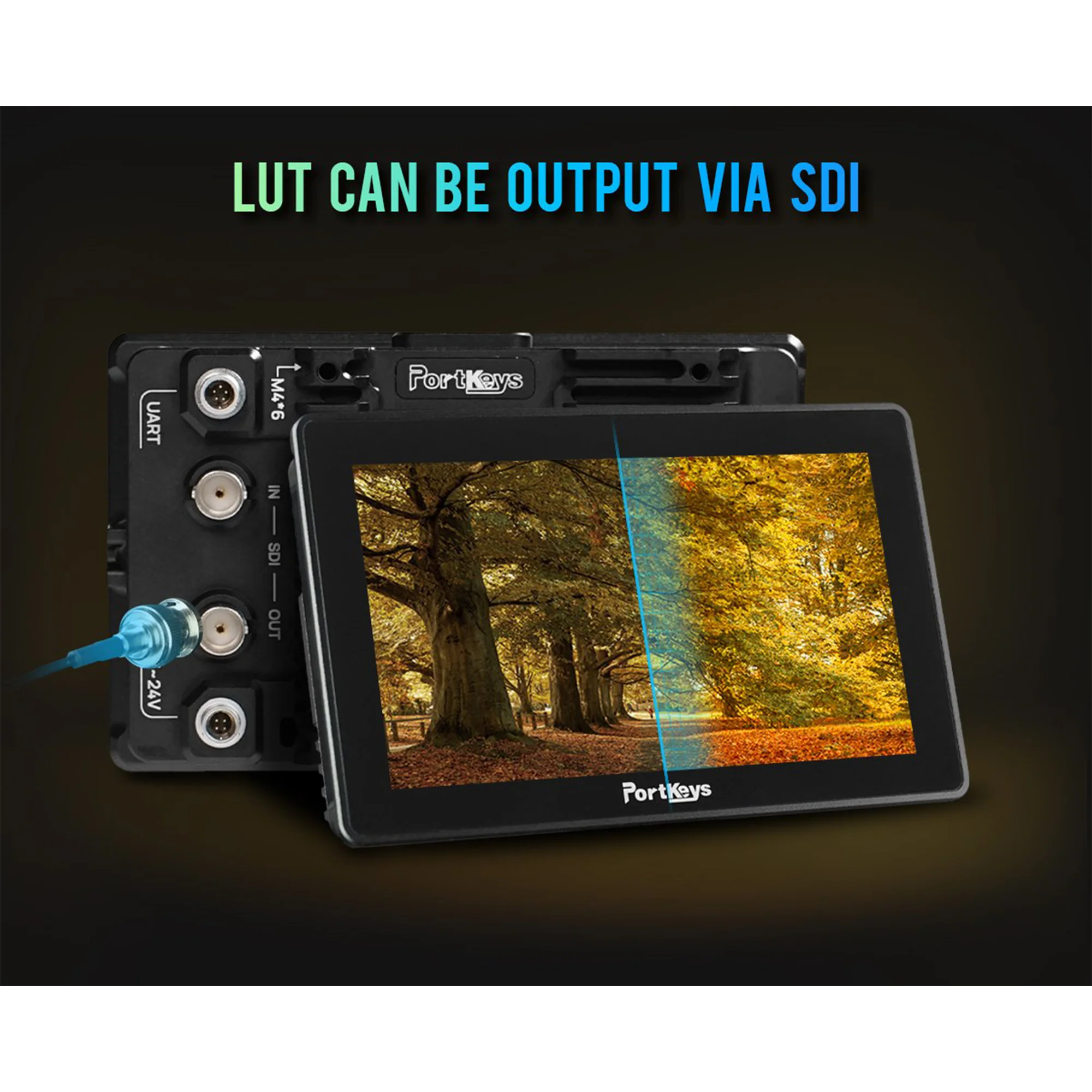

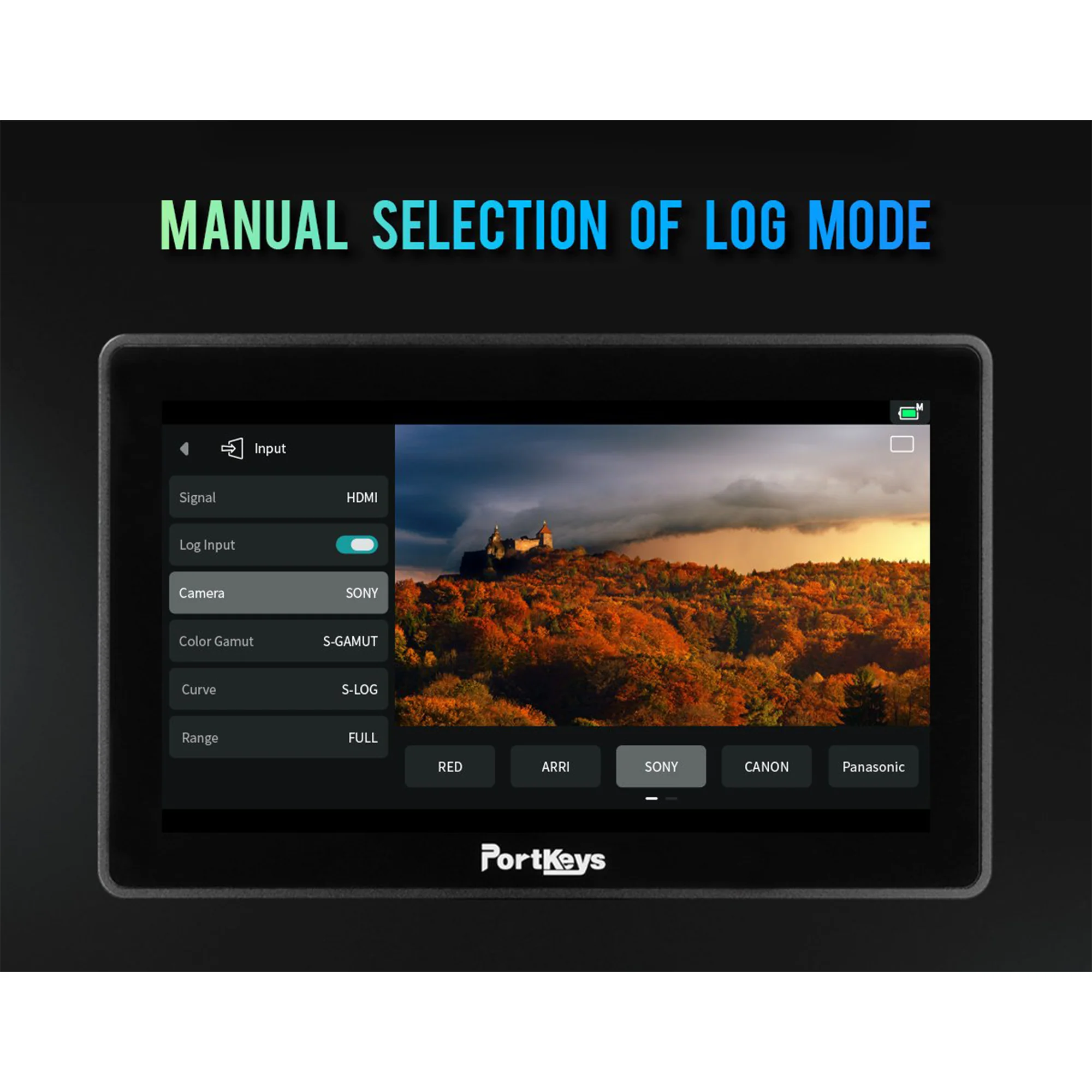

• 3D LUT monitoring and 3D LUT SDI output capabilities

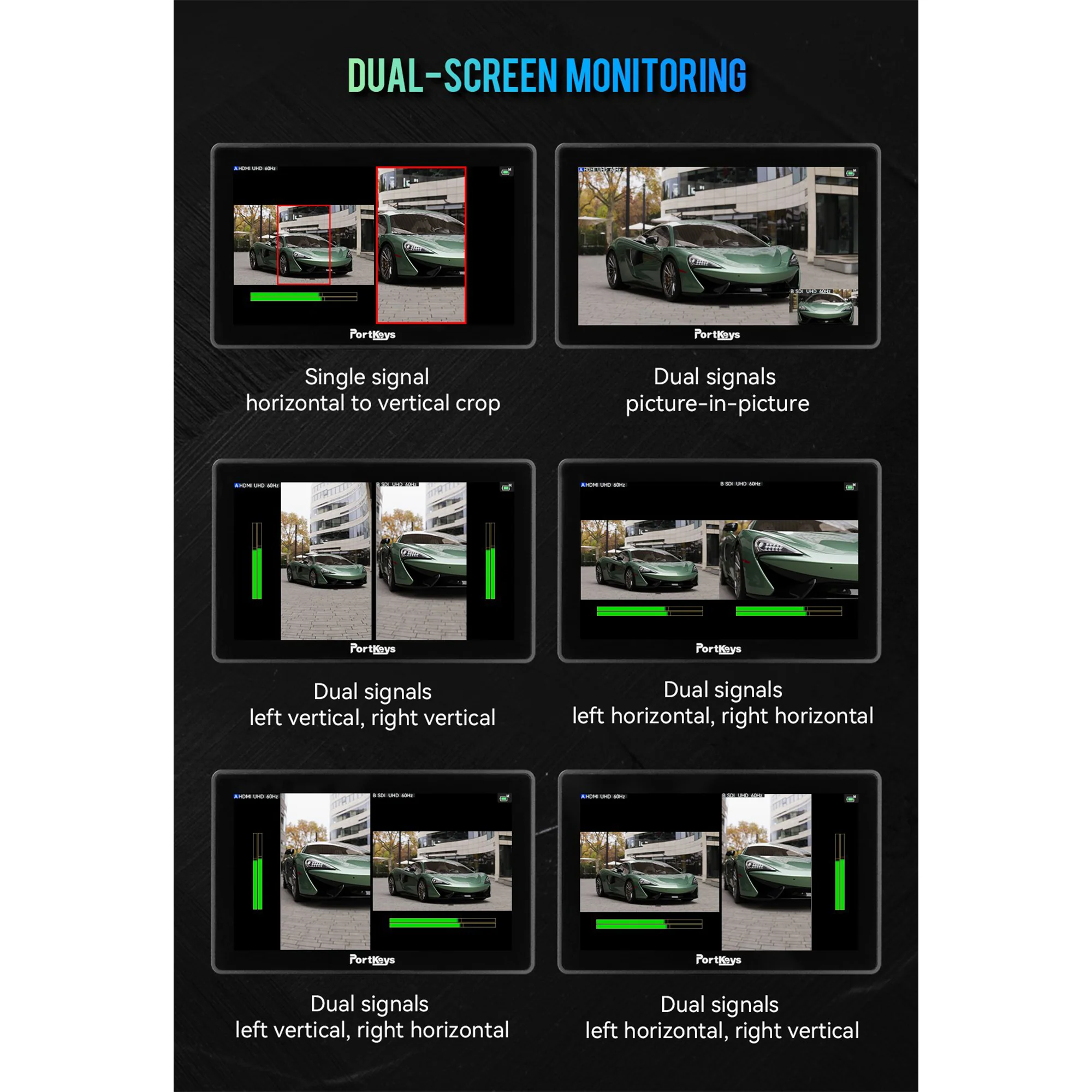

• Split-screen monitoring capabilities with multiple viewing modes, including PBP, PIP, and H2V

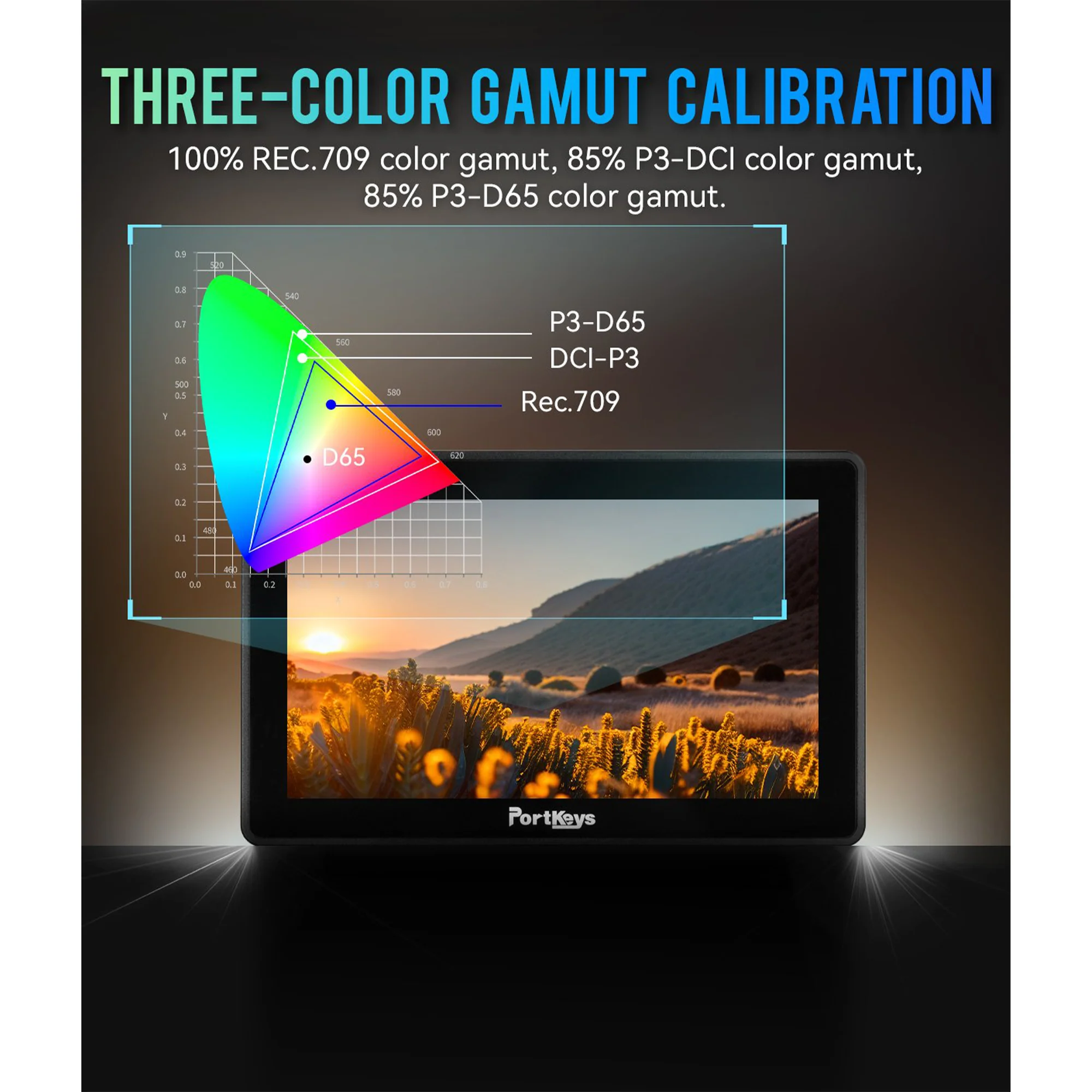

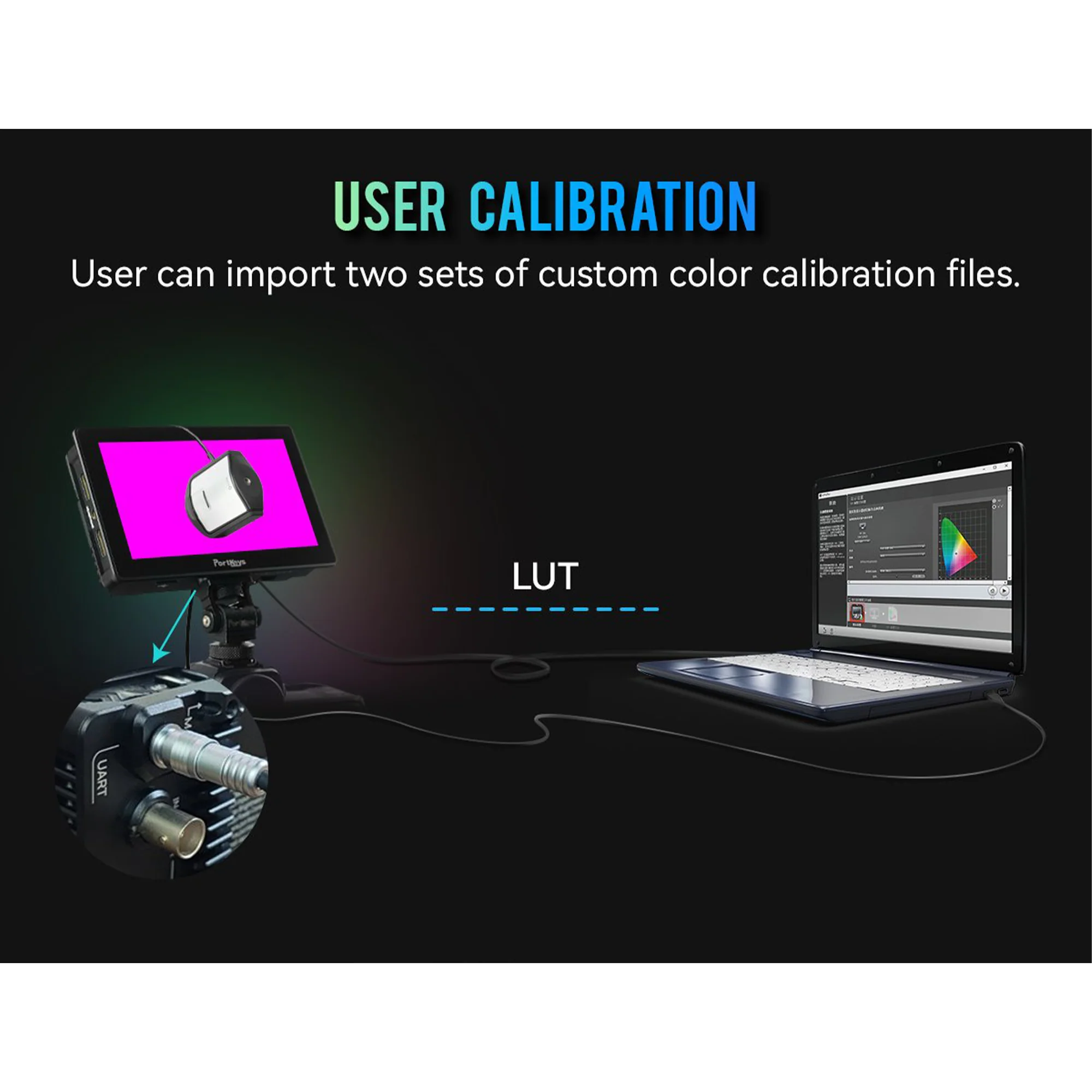

• Factory color-calibrated, and the possibility for users to create a 3D calibration LUT with an X-Rite color probe

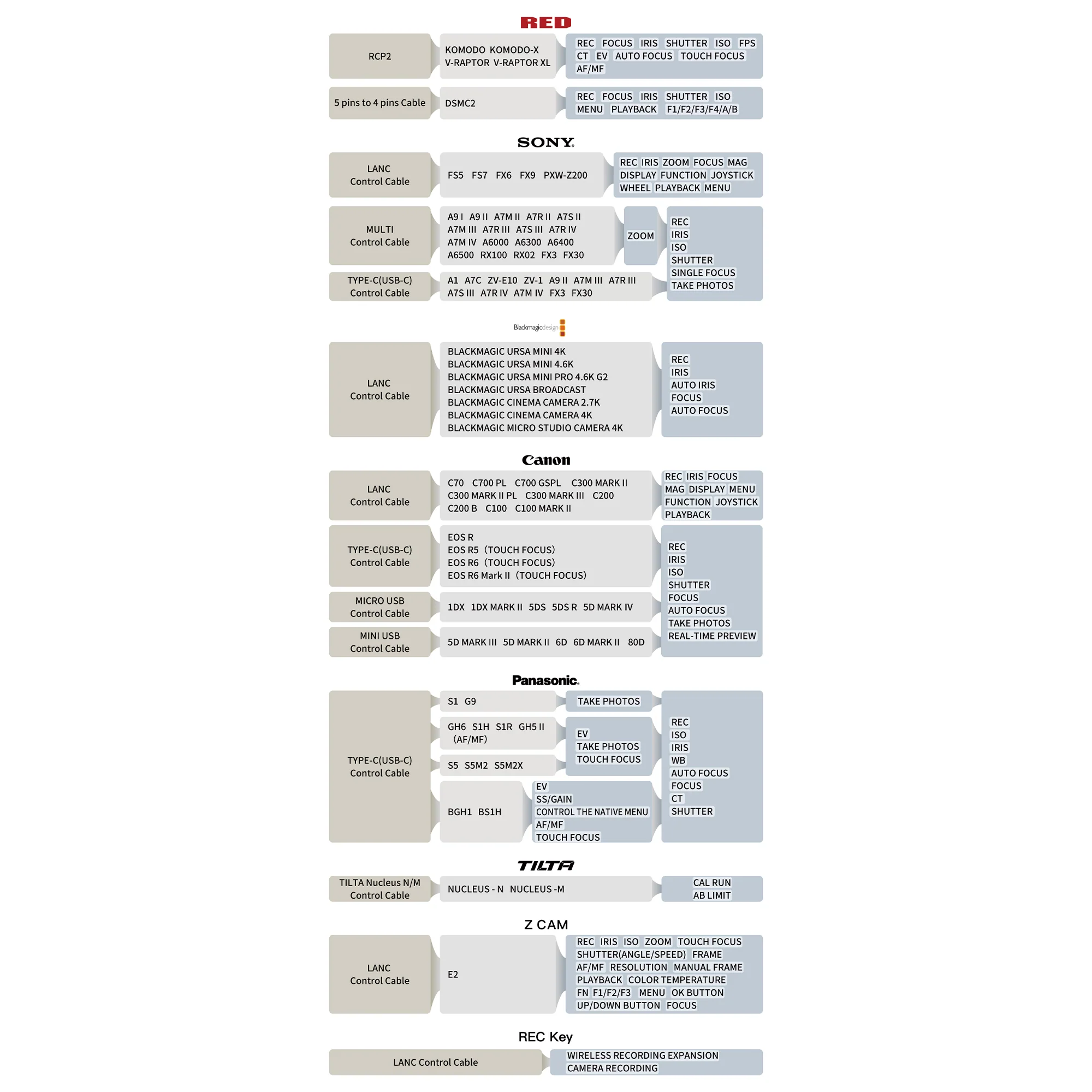

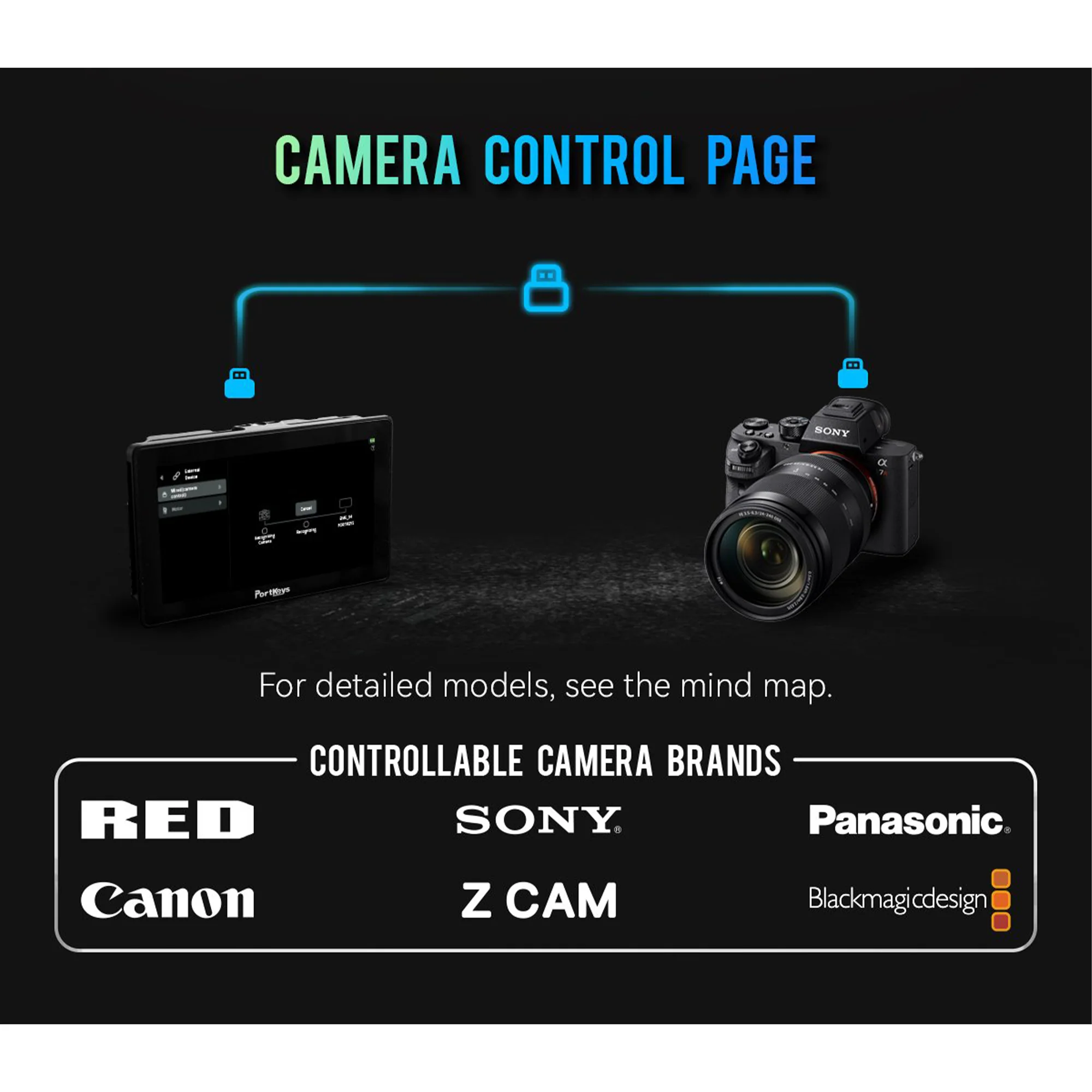

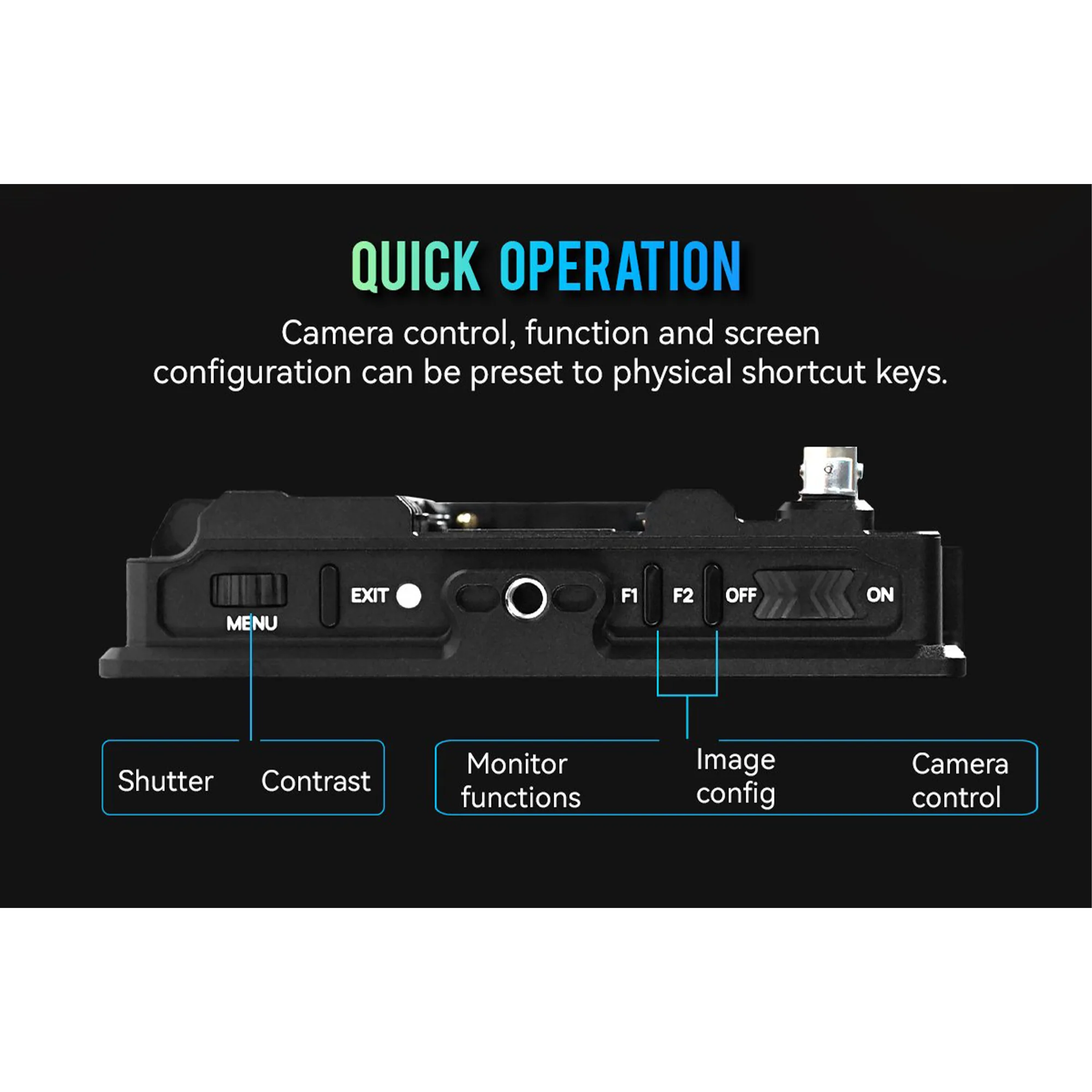

• Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2
• TILTA Nucleus N/M wireless follow focus wired control
• Built-in Sony NP-F style battery plate

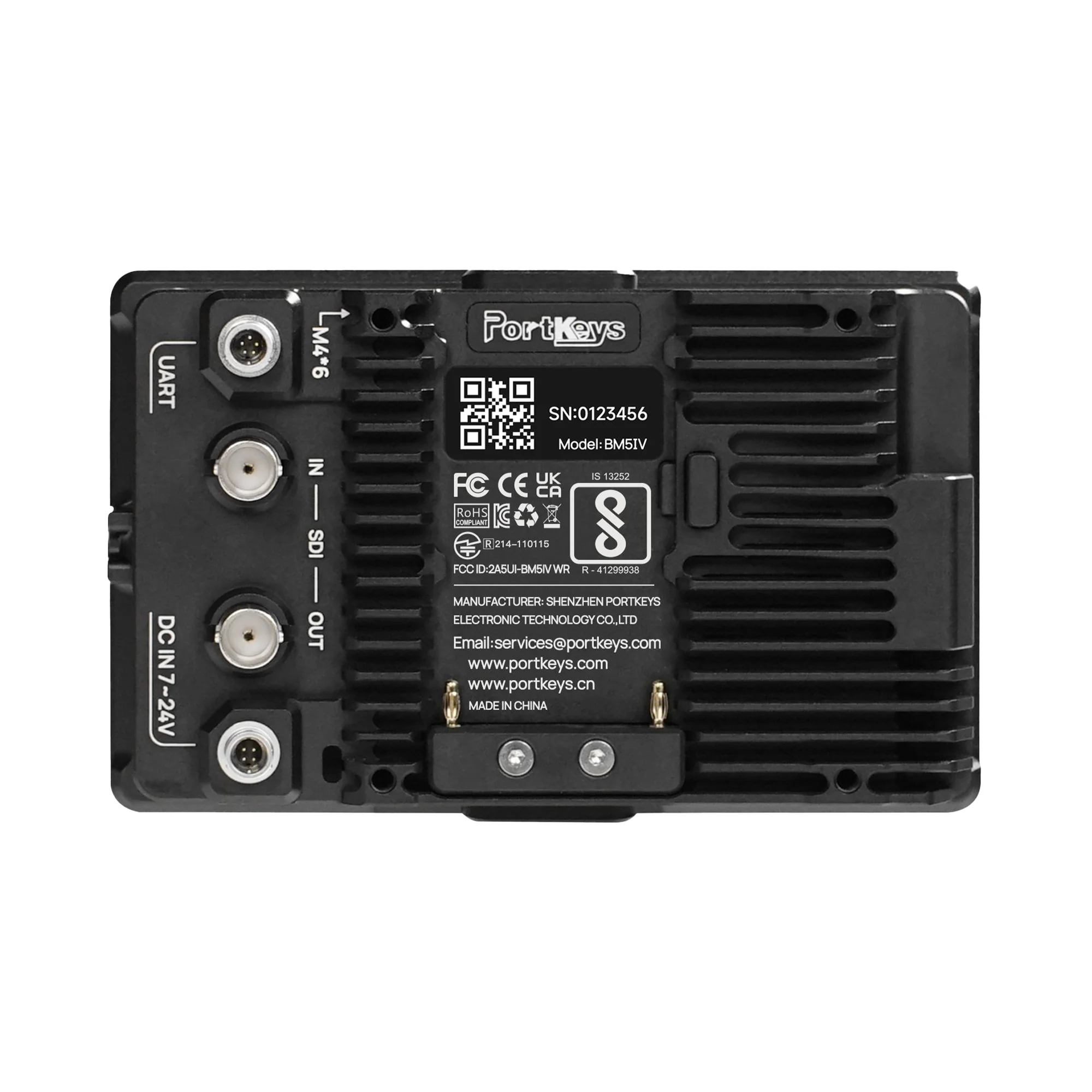

• 4-pin 7.4V-24V power inputs for external power (D-Tap cable included)

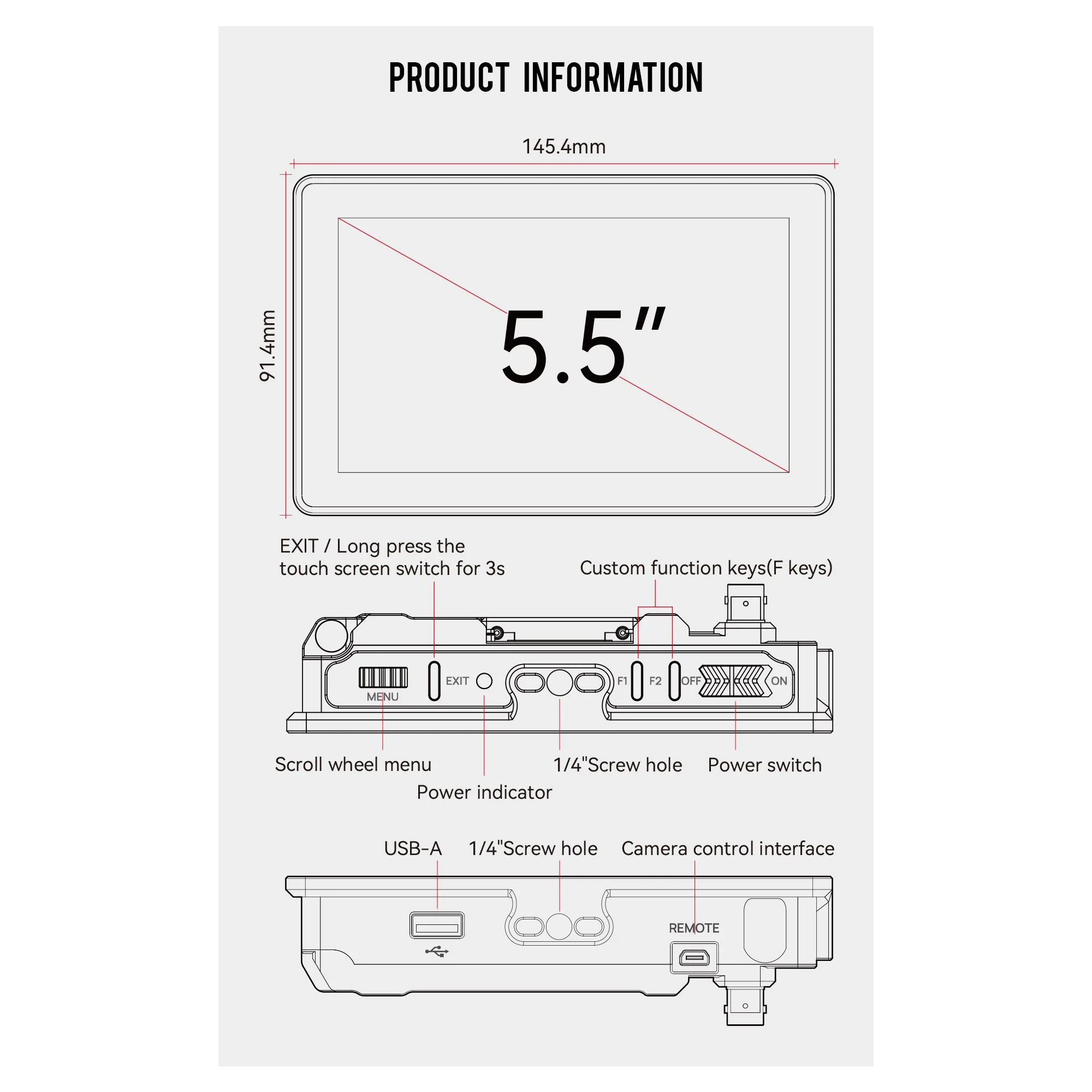

• Lightweight and rugged aluminum housing: only 358g/12.62oz

Product SKU:

BM5 IV

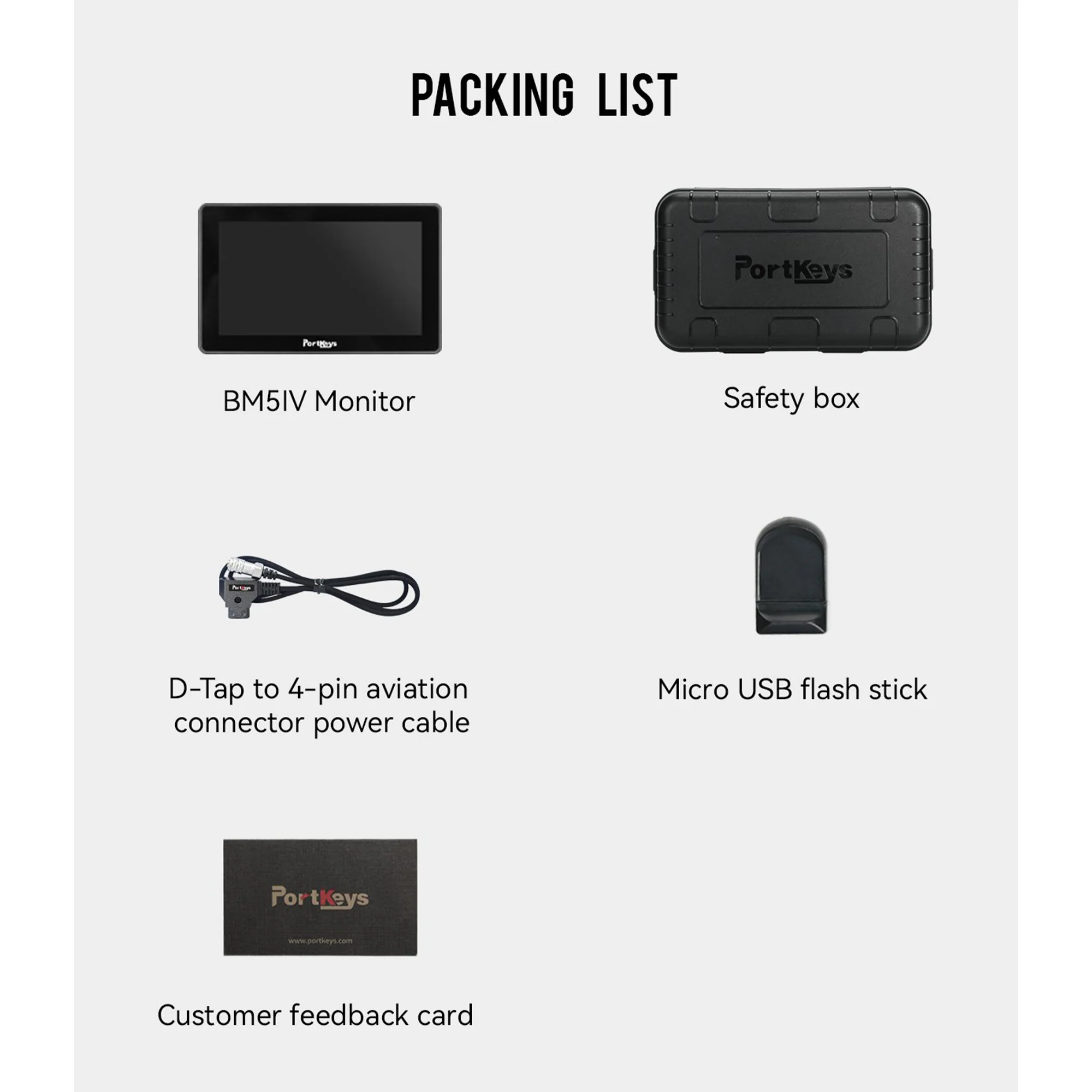

In The Box:

Portkeys BM5IV 5.5" 4K HDMI/SDI Touchscreen Monitor with Camera Control
Micro-USB Flash Drive
D-Tap to 4-Pin Aviation Power Cable
Storage Case
Limited 1-Year Manufacturer Warranty
